Power Relay
Power relay series covering various control management functions.
With our superior characteristics and shared design principle, the relays of the power series cover a wide variety of control management functions, such as smart home, lighting control, home appliances, new energy, power charging applications, industrial control or electric power meters, etc.
– High switching performance with minimal energy consumption
– High switching capacity with optimal durability
– High reliability combined with minimum mechanical components
– Exceptionally broad range of switching capacities: 2-50 A/125-250 VAC, 2-50 A/12 – 48 VDC
– Custom-made service available and flexible capacity on site
– Conforms to safety norms and standards worldwide, Like UL, TUV/VDE, RoHS, REACH
Showing 1–10 of 19 results
-
Read moreFH20
Features
●35A switching capability
●Contact arrangement:1A
●Provide the contact gap of the product is≥2.3mm,conforming to IEC6... -
Read moreW33
• Product type: W33
●10A switching capability
●Creepage distance and air distance are >6mm
●Normally open type is UL certificated by TV-5 12... -
Read moreW39
• Product type: W39
• Dimension: 29.0×12.7×25.3mm
• Switching capacity: 16A
• Coil voltage: 5-100V
• Main applications: Industrial Con... -
Read moreW36
• Product type: W36
• Dimension: 23.0×16.0×10.4mm
• Switching capacity: 16A
• Coil voltage: 3-48V
• Main applications: Home appliance,... -

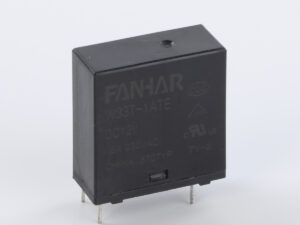

Read moreW33T
• Product type: W33T
• Dimension: 24.0×11.0×25.0mm
• Switching capacity: 16A
• Coil voltage: 5-24V
• Main applications: Home appliance... -
Read moreW28
• Product type: W28
• Dimension: 15.5×12.0×14.0mm
• Switching capacity: 20A
• Coil voltage: 5-24V
• Main applications: Automobile door... -
Read moreW19/W19F
• Product type: W19/W19F
• Dimension: 20.0×5.0×12.5mm
• Switching capacity: 5A
• Coil voltage: 3-24V
• Main applications: Signal Contr... -

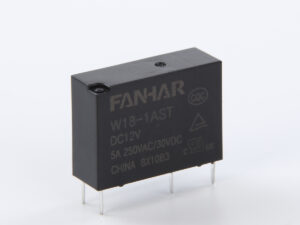

Read moreW18
• Product type: W18
• Dimension: 20.4×7.0×15mm
• Switching capacity: 10A
• Coil voltage: 3-24V
• Main applications: Home Appliance, Sm... -
Read moreW17
• Product type: W17
• Dimension: 18.4×10.2×15.5mm
• Switching capacity: 16A
• Coil voltage: 3-48V
• Main applications: Home Applia... -
Read moreW16
• Product type: W16
• Dimension: 20.5×10.5×15.8mm
• Switching capacity: 10A
• Coil voltage: 3-48V
• Main applications: Home Appliance,...
