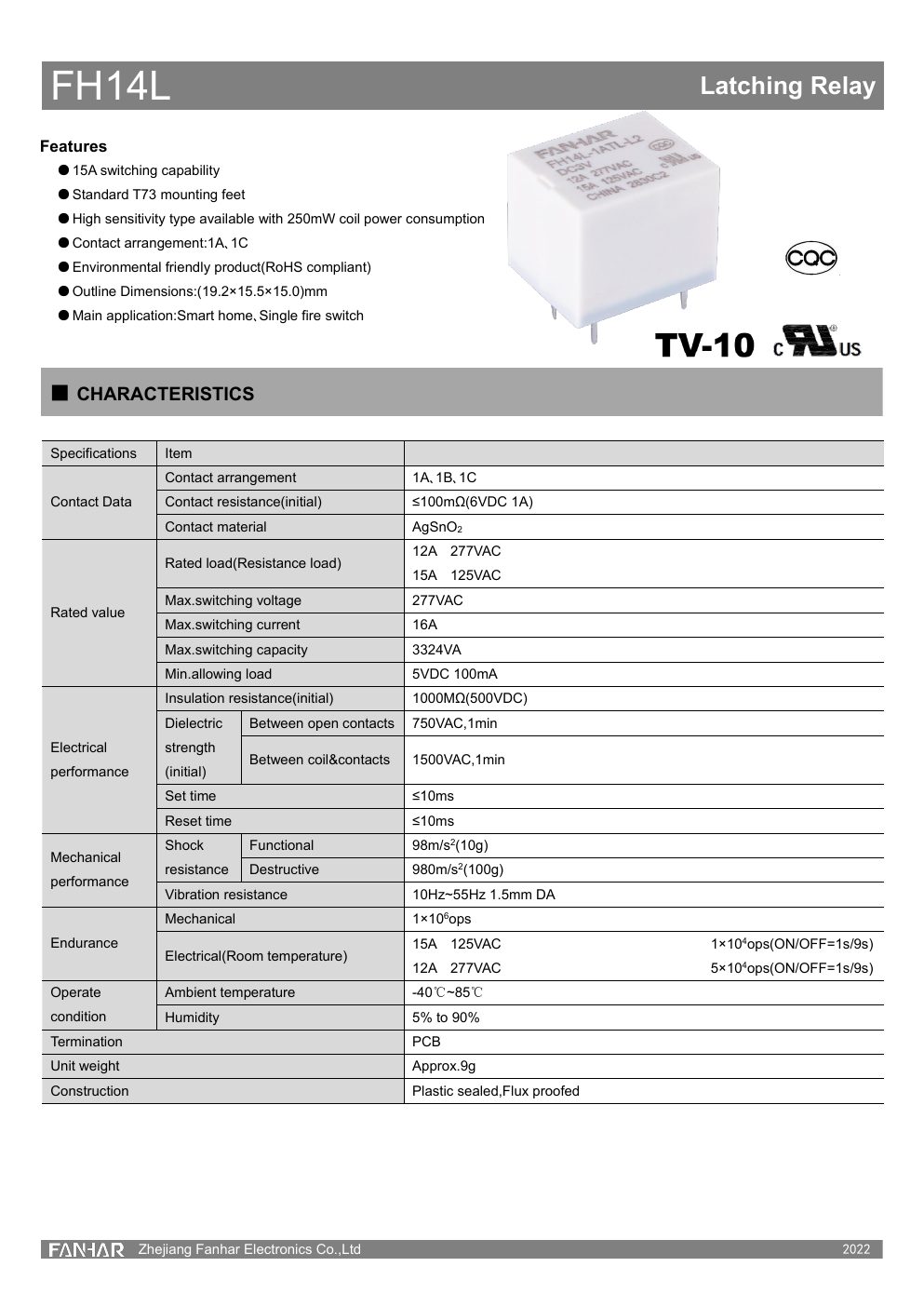

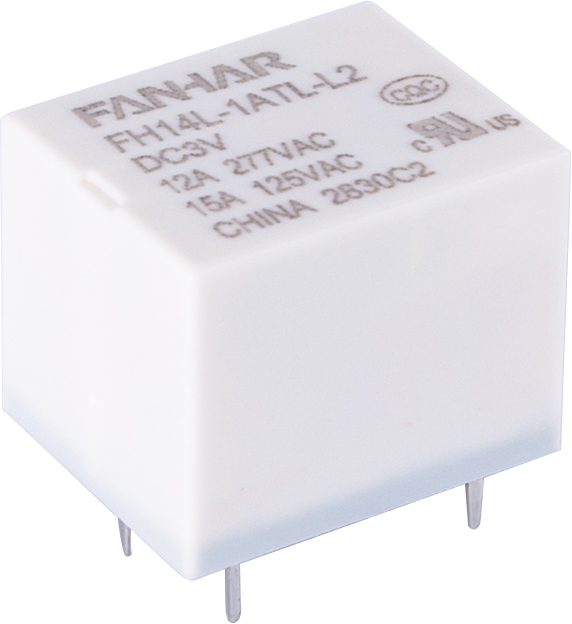

FH14L
Features
●15 A switching capability
●Standard T 73 mountingfeet
●Highsensitivitytypeavailablewith 250 m Wcoilpowerconsumption
●Contact arrangement:1 A､1 C
●Environmental friendly product(Ro HS compliant)
●Outline dimensions:(19.2×15.5×15.0)mm
●Main application:Smart home､Singlefireswitch
Description
Features
●15 A switching capability
●Standard T 73 mountingfeet
●Highsensitivitytypeavailablewith 250 m Wcoilpowerconsumption
●Contact arrangement:1 A､1 C
●Environmental friendly product(Ro HS compliant)
●Outline dimensions:(19.2×15.5×15.0)mm
●Main application:Smart home､Singlefireswitch
For more application info or datasheet, pls contact us to get by mail.
Datasheet Preview
Related products
-
Read moreFH47L
Features
●1 setsof 20 A switching capability，2 setsof 10 A switching capability
●Thecontactonandoffcanbecontrolledbythehandcontrolswitch
●Withmanualoperationandpositionind... -

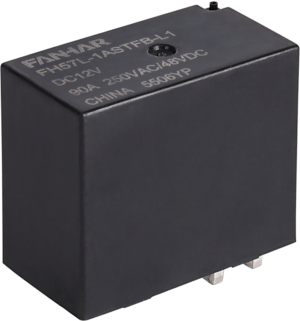

Read moreFH57L
