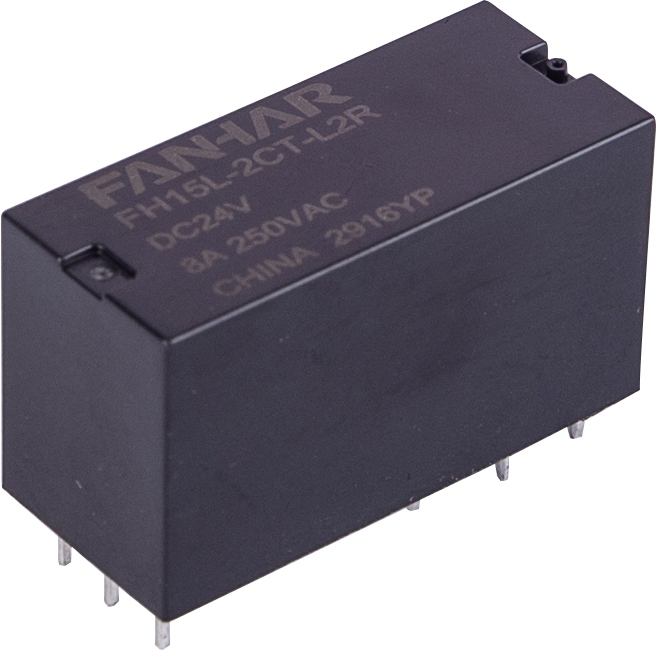

FH15L-2
Features
●10 A switching capability
●Thecontactonandoffcanbecontrolledbythehandcontrolswitch
●Productswithoperatingtemperatureof 105℃areavailable
●Canprovidetheproductmeetthestandardof IEC 60335-1
●ULinsulationsystem:Class F
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(29.0×12.7×16.0)mm
●Main application:Industrial Control
Description
Features
●10 A switching capability
●Thecontactonandoffcanbecontrolledbythehandcontrolswitch
●Productswithoperatingtemperatureof 105℃areavailable
●Canprovidetheproductmeetthestandardof IEC 60335-1
●ULinsulationsystem:Class F
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(29.0×12.7×16.0)mm
●Main application:Industrial Control
For more application info or datasheet, pls contact us to get by mail.

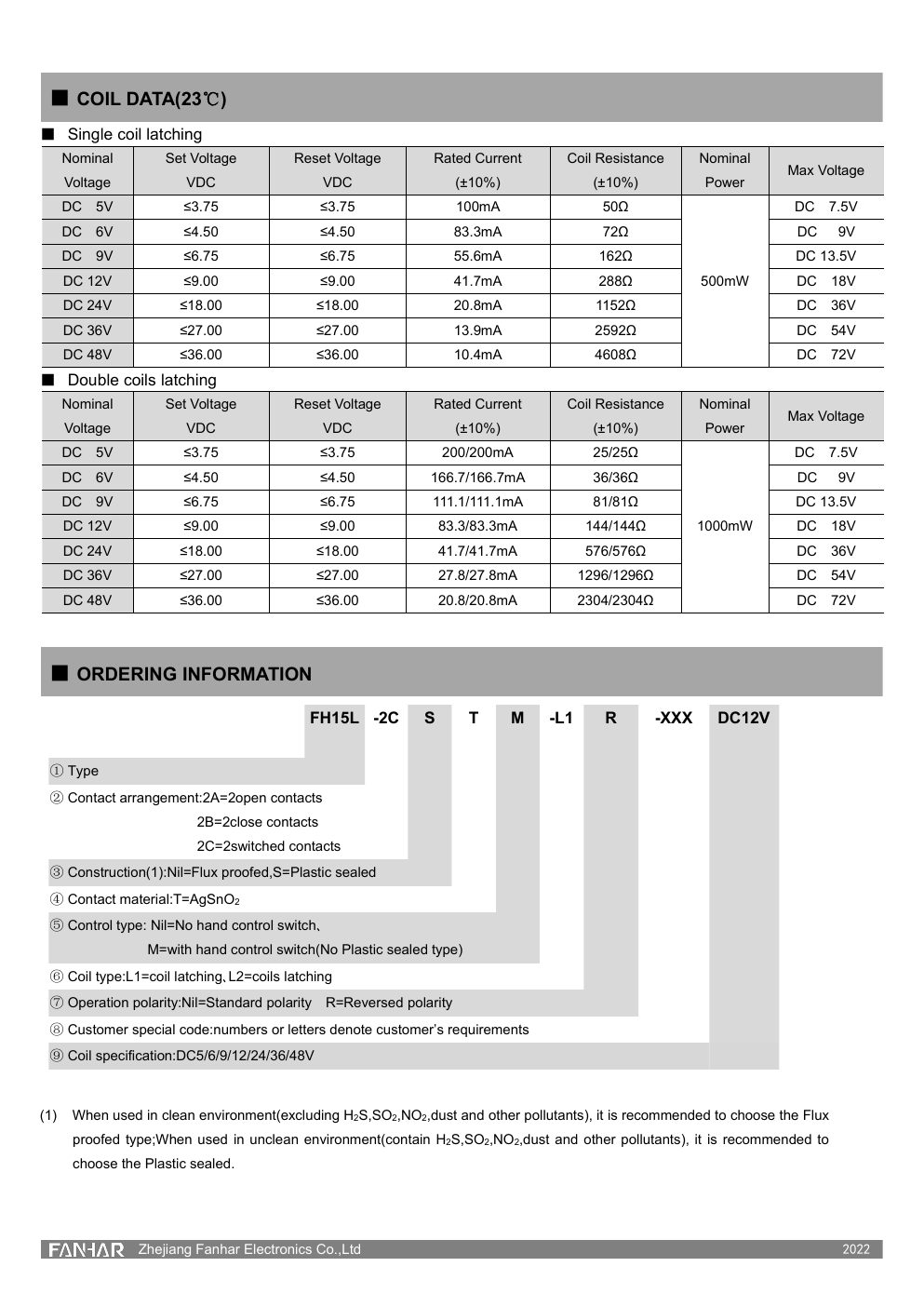

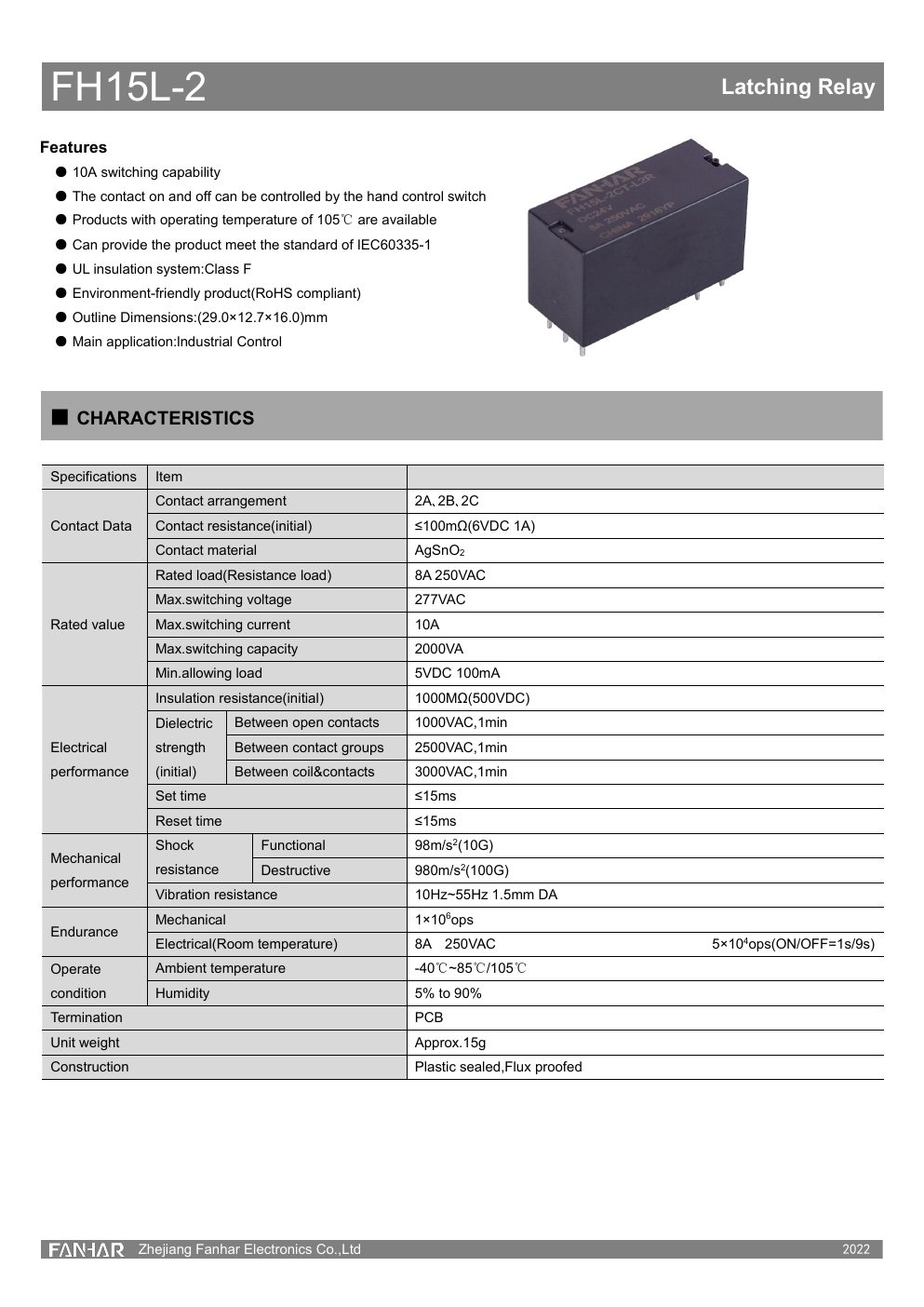

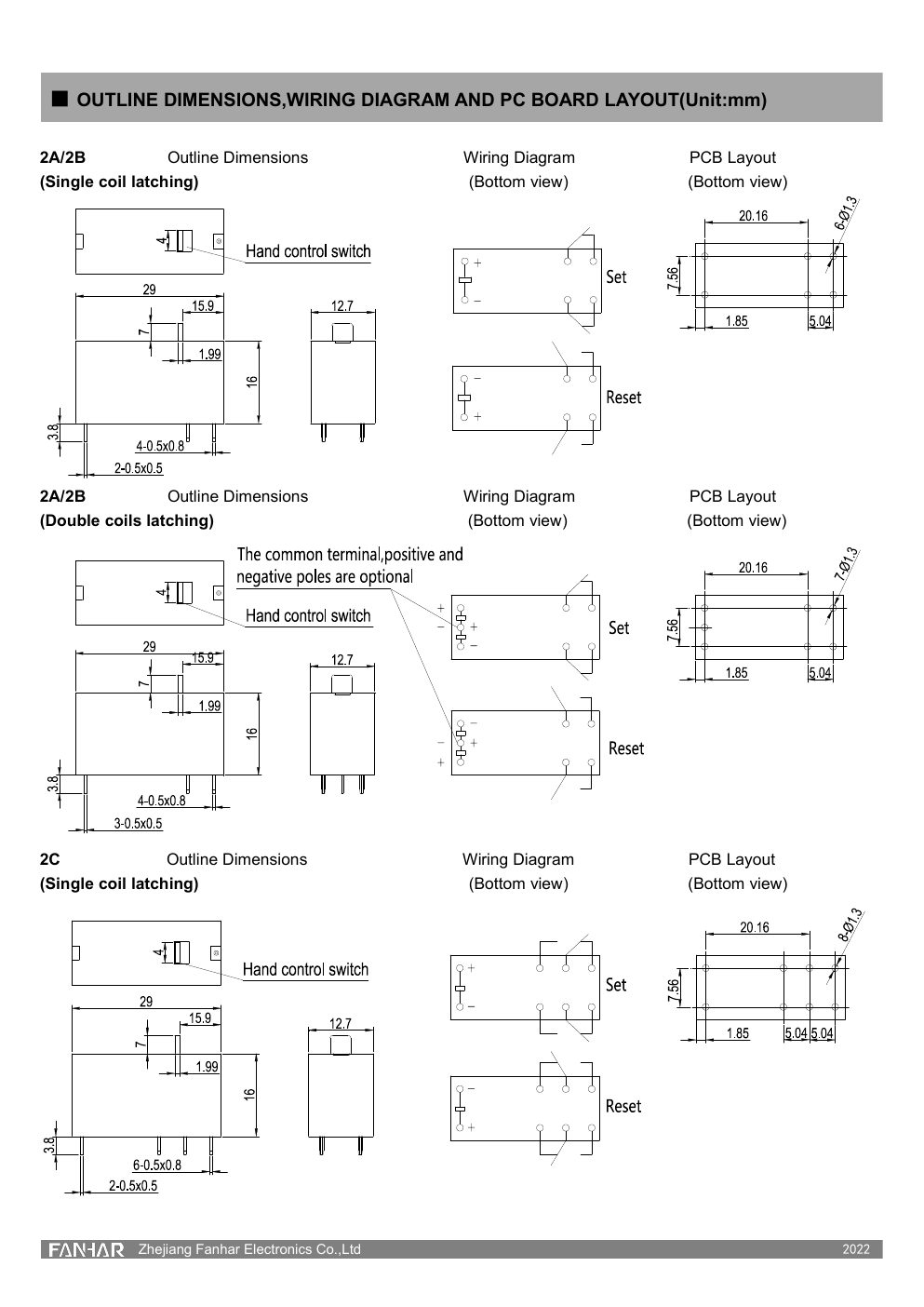

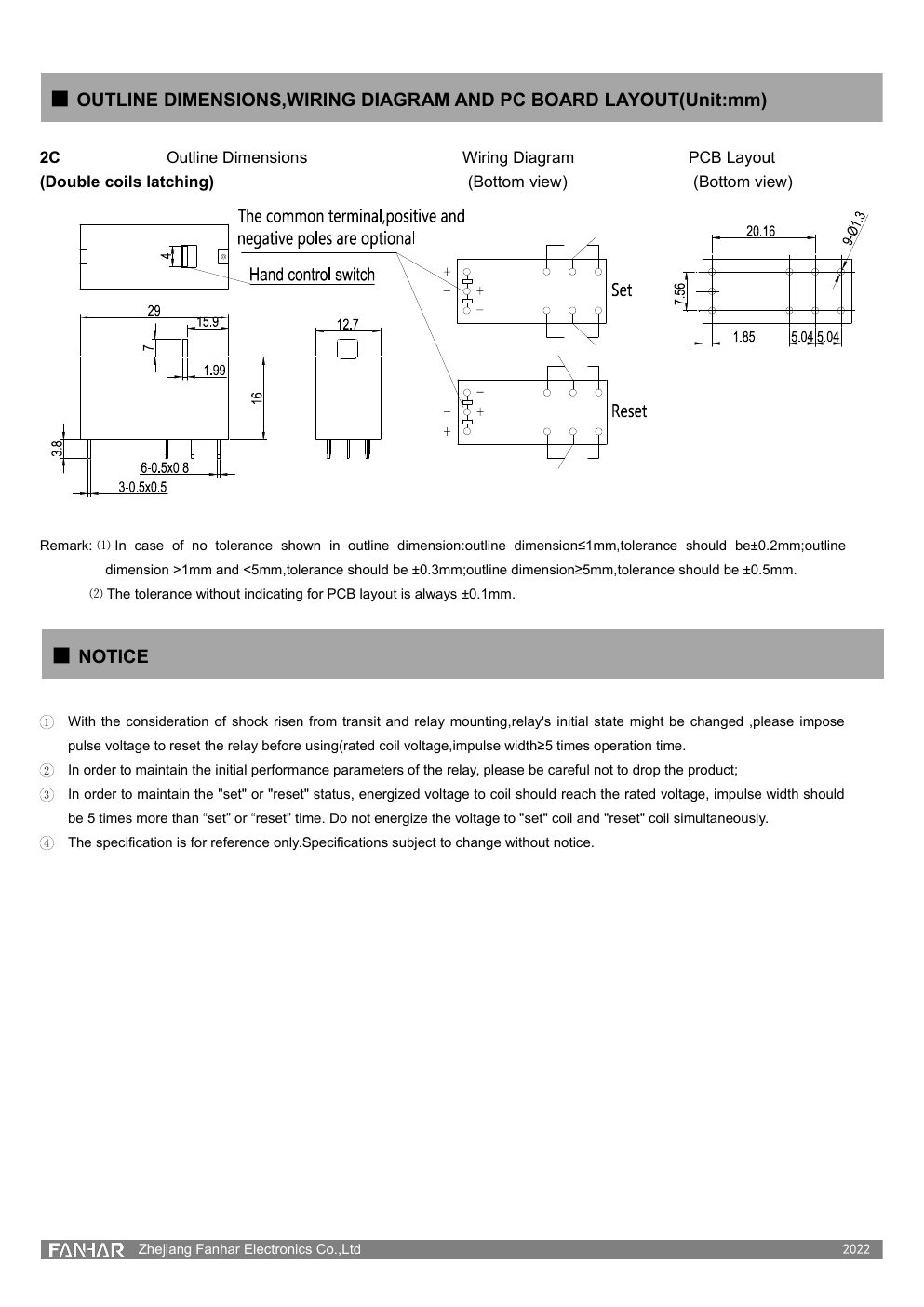

Datasheet Preview
