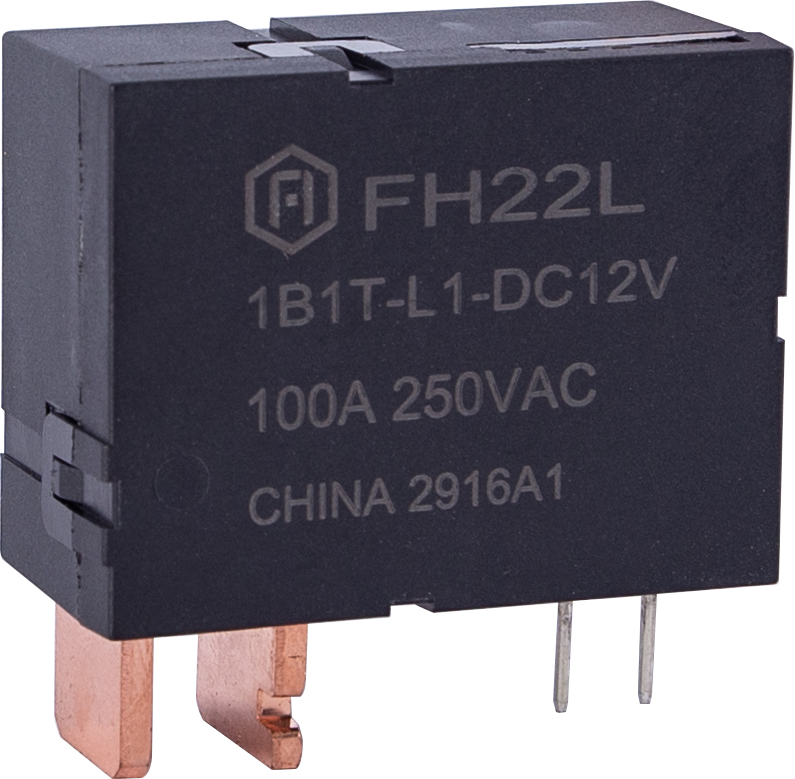

FH22L
Features
●100 A switching capability
●Single coil and double coils are available
●External accessories such as manganese copper shunts and
●transformers can be ordered according to customer requirements
●Breakdown voltage(between contact and coil):4 KV
●Meets standard of IEC 62052-31:2005 UC 2/UC 3
●Environment-friendly product(Ro HS compliant)

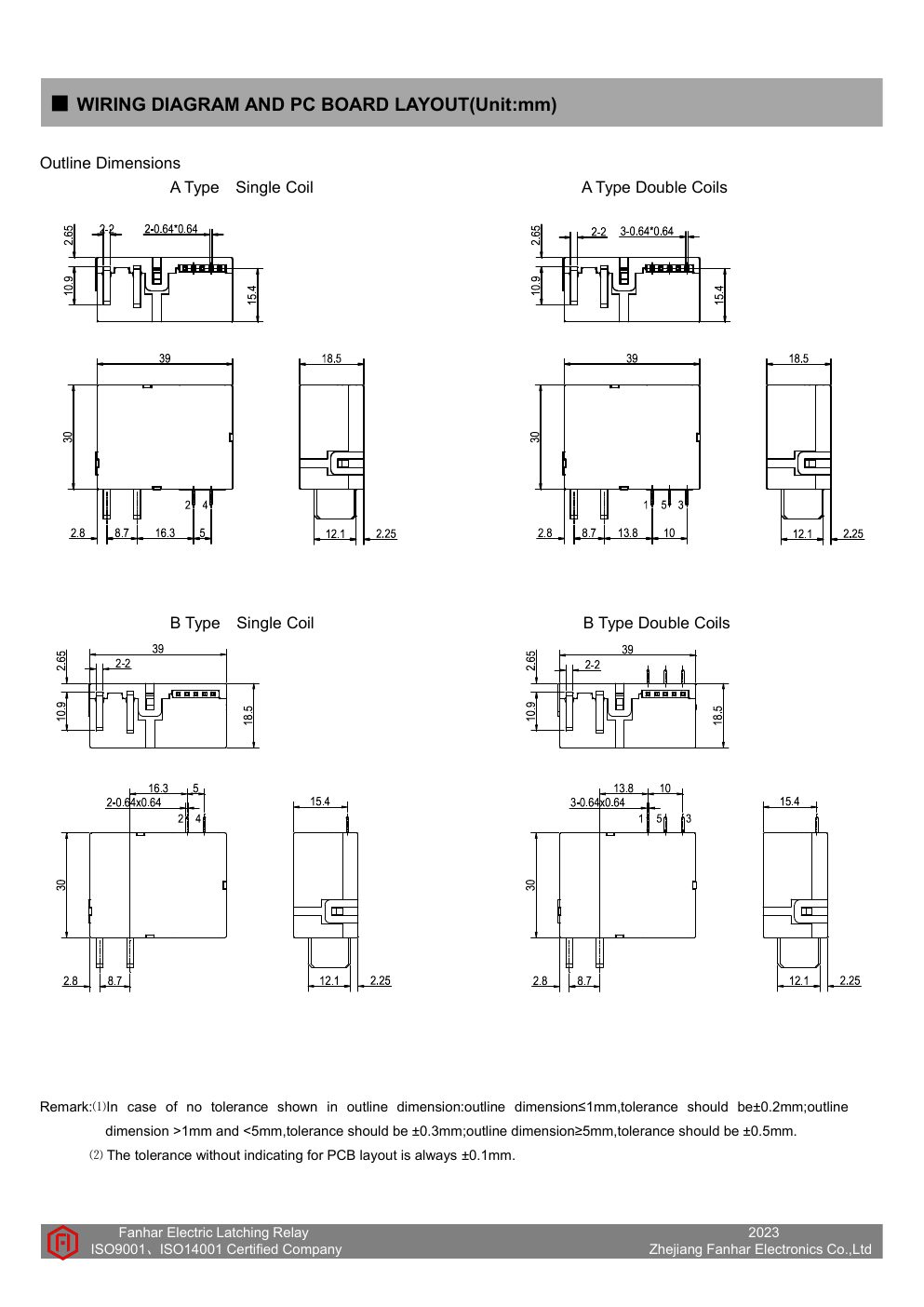

●Outline dimensions:(39.0×30.0×18.5)mm
●Can be integrated design,convenient automatic installation and production
●Power frequency interference resistance,and good consistency
●Main application:smart meter,compound switch,Smart home,new energy
Description
Features
●100 A switching capability
●Single coil and double coils are available
●External accessories such as manganese copper shunts and
●transformers can be ordered according to customer requirements
●Breakdown voltage(between contact and coil):4 KV
●Meets standard of IEC 62052-31:2005 UC 2/UC 3
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(39.0×30.0×18.5)mm
●Can be integrated design,convenient automatic installation and production
●Power frequency interference resistance,and good consistency
●Main application:smart meter,compound switch,Smart home,new energy
For more application info or datasheet, pls contact us to get by mail.

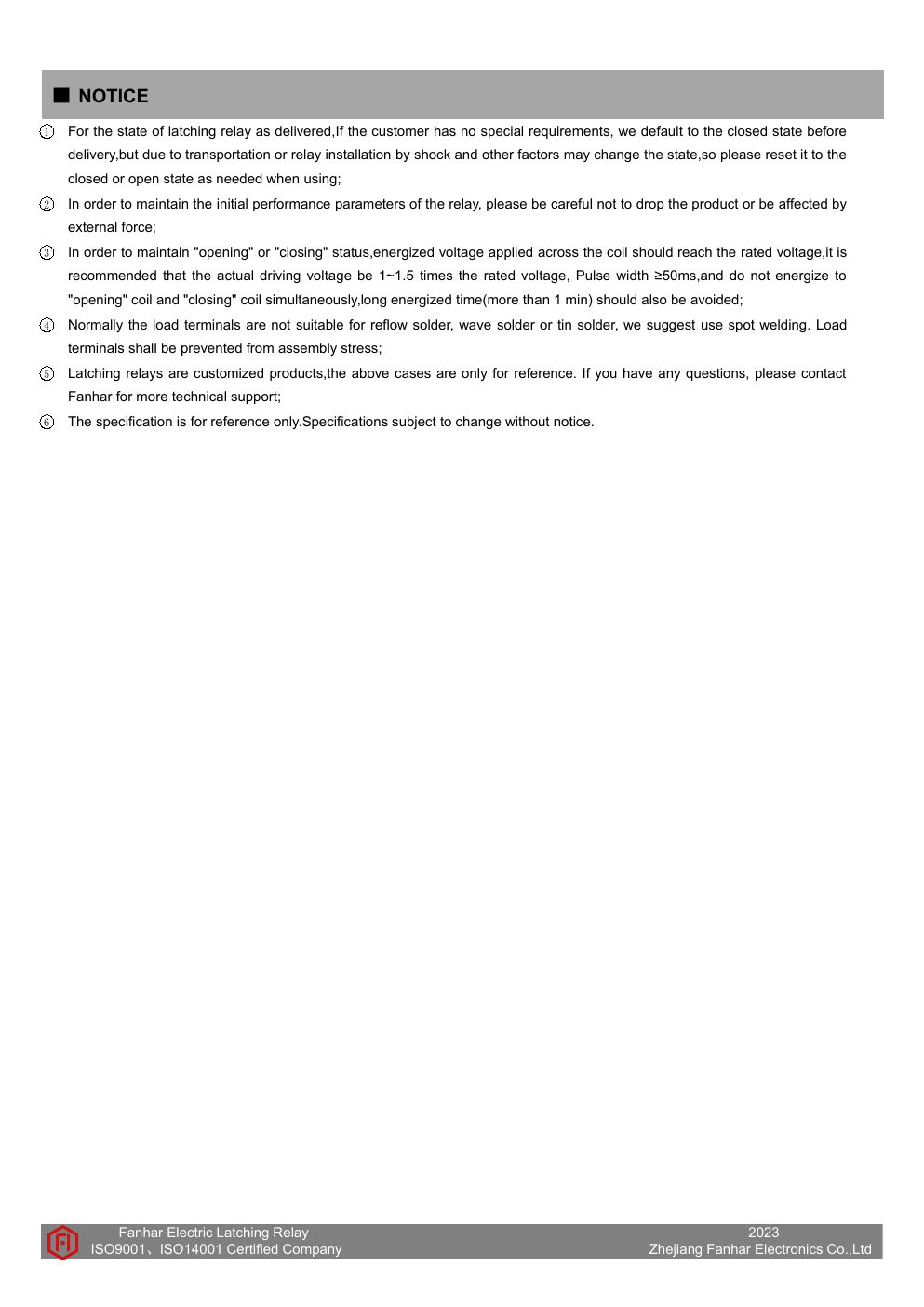

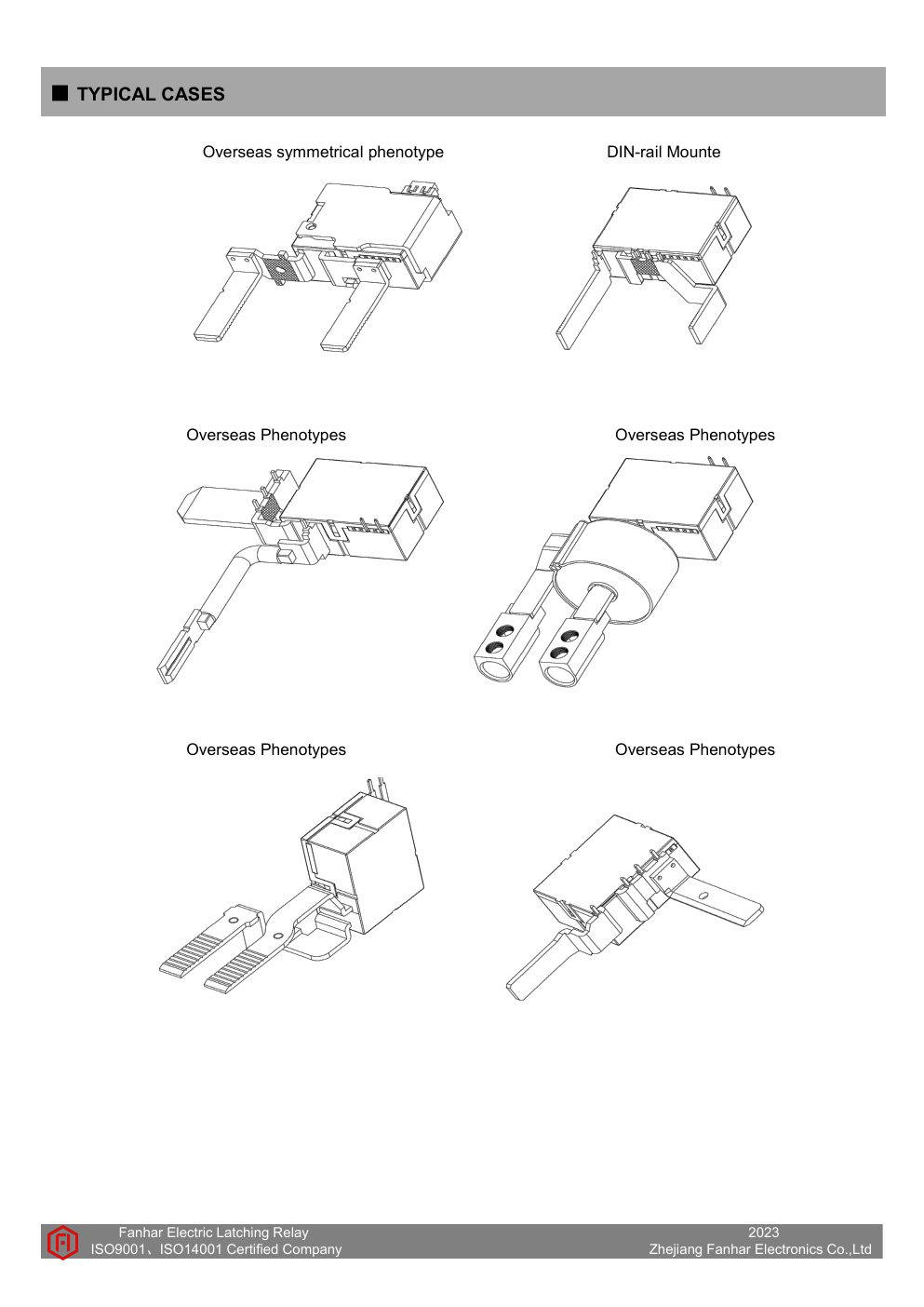

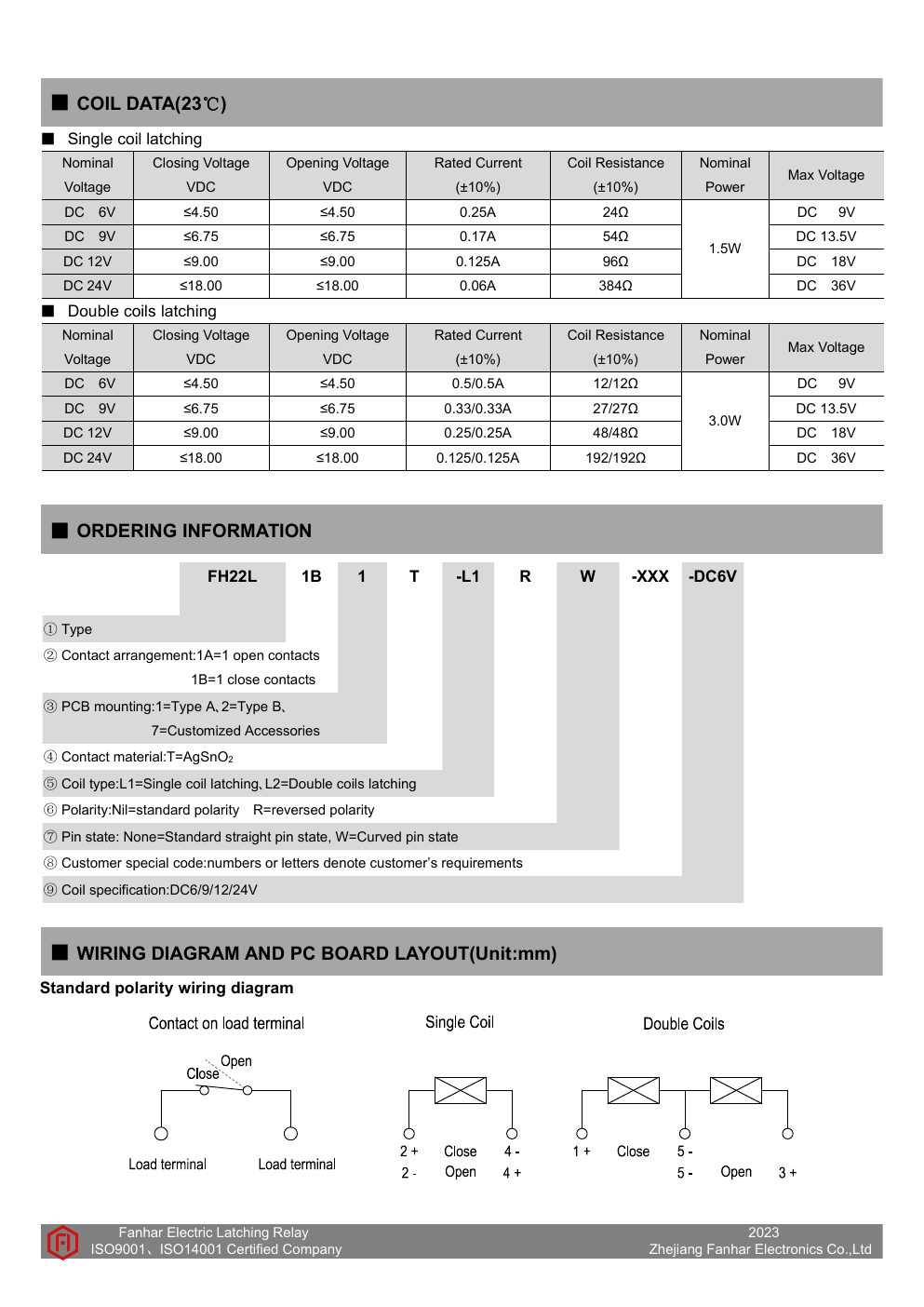

Datasheet Preview
Related products
-

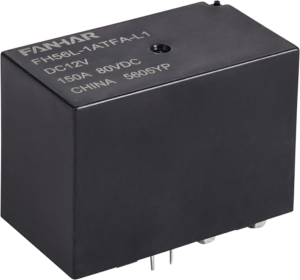

Read moreFH56L
