FH26L
Features
●120 A switching capability
●Single coil and double coils are available
●External accessories such as manganese copper shunts and
●transformers can be ordered according to customer requirements
●Breakdown voltage(between contact and coil):4 KV
●Meets standard of IEC 62052-31：2005 UC 4
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(115×46.5×26)mm
●Can be integrated design,convenientautomaticinstallationand PR
●production
●Power frequency interference resistance,and good consistency
●Main application:smart meter
Description
Features
●120 A switching capability
●Single coil and double coils are available
●External accessories such as manganese copper shunts and
●transformers can be ordered according to customer requirements
●Breakdown voltage(between contact and coil):4 KV
●Meets standard of IEC 62052-31：2005 UC 4
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(115×46.5×26)mm
●Can be integrated design,convenientautomaticinstallationand PR
●production
●Power frequency interference resistance,and good consistency
●Main application:smart meter
For more application info or datasheet, pls contact us to get by mail.

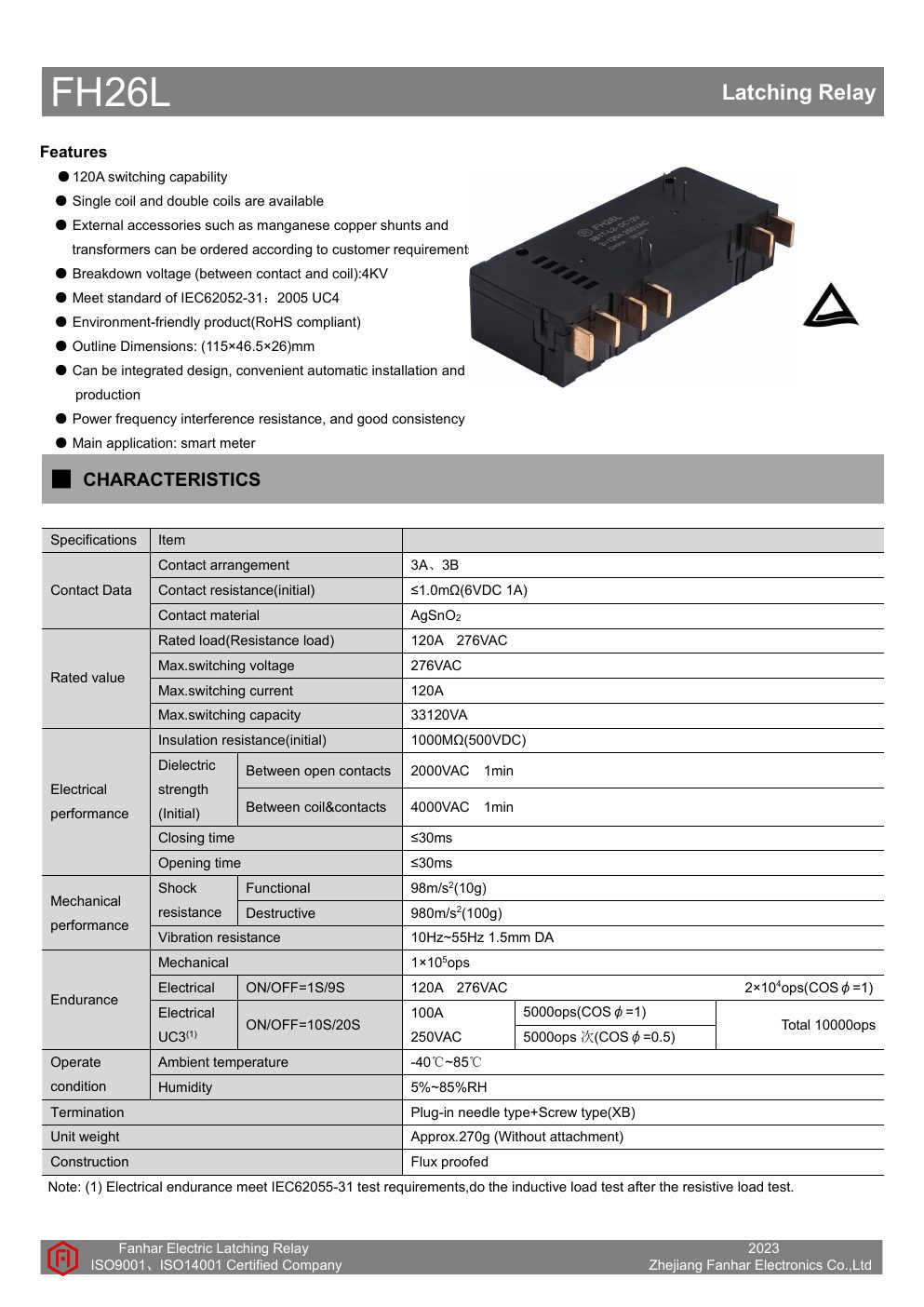

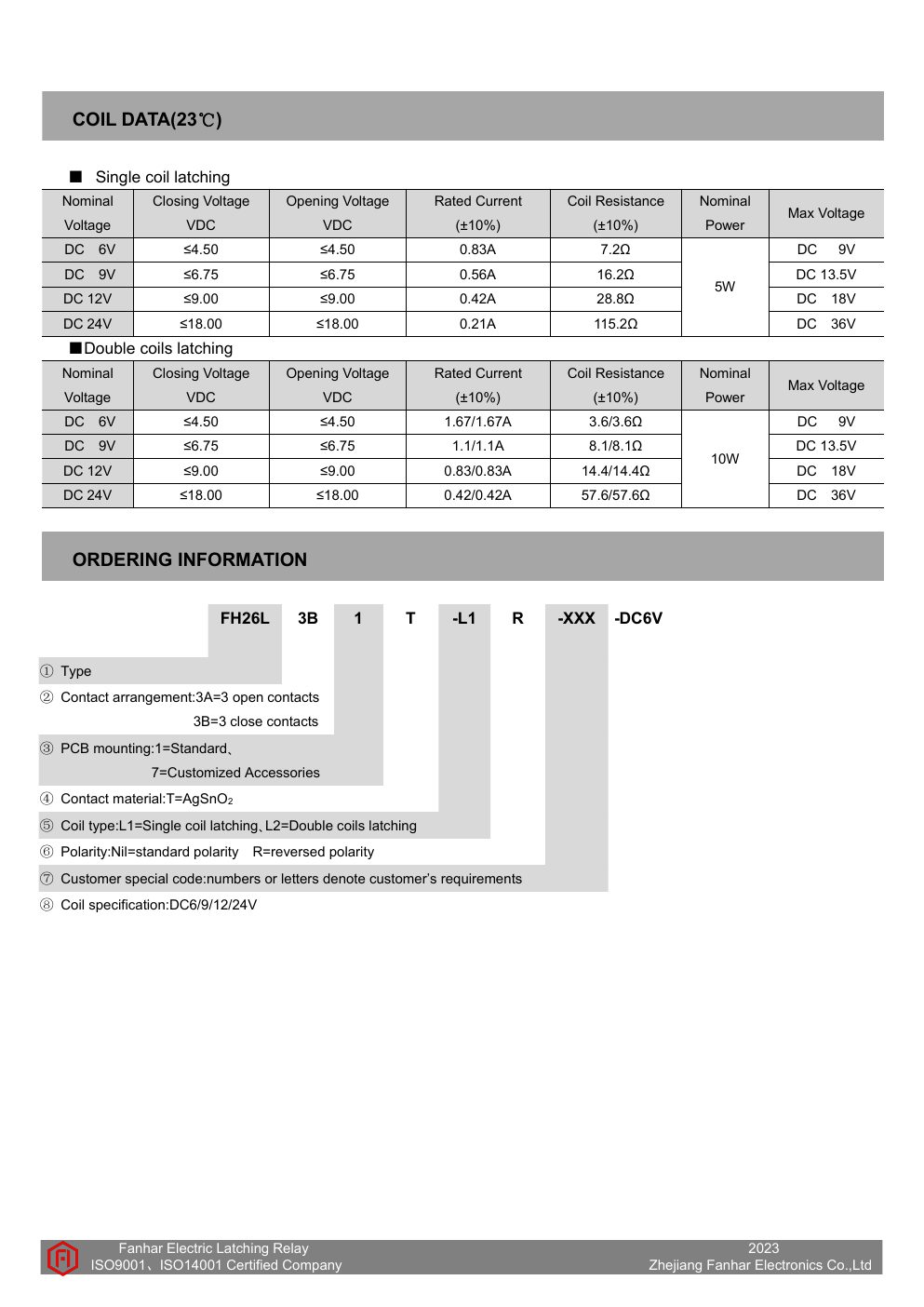

Datasheet Preview
