FH27LB
Features
●100 A switching capability
●Single coil and double coils are available
●Optionalauxiliarycontact，thestatusofsynchronousor
●asynchronouscontactwiththeloadendisoptional
●Externalaccessoriescanbecustomizedaccordingtouser'srequirements
●Surgevoltage(1.2/50μs):between contact and coil 12 KV
●Meetsthe PVTesting Standardsof VDE 0126
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(52.0×43.0×22.0)mm
●Main application:smart meter,compound switch,Smart home,new energy
Description
Features
●100 A switching capability
●Single coil and double coils are available
●Optionalauxiliarycontact，thestatusofsynchronousor
●asynchronouscontactwiththeloadendisoptional
●Externalaccessoriescanbecustomizedaccordingtouser'srequirements
●Surgevoltage(1.2/50μs):between contact and coil 12 KV
●Meetsthe PVTesting Standardsof VDE 0126
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(52.0×43.0×22.0)mm
●Main application:smart meter,compound switch,Smart home,new energy
For more application info or datasheet, pls contact us to get by mail.

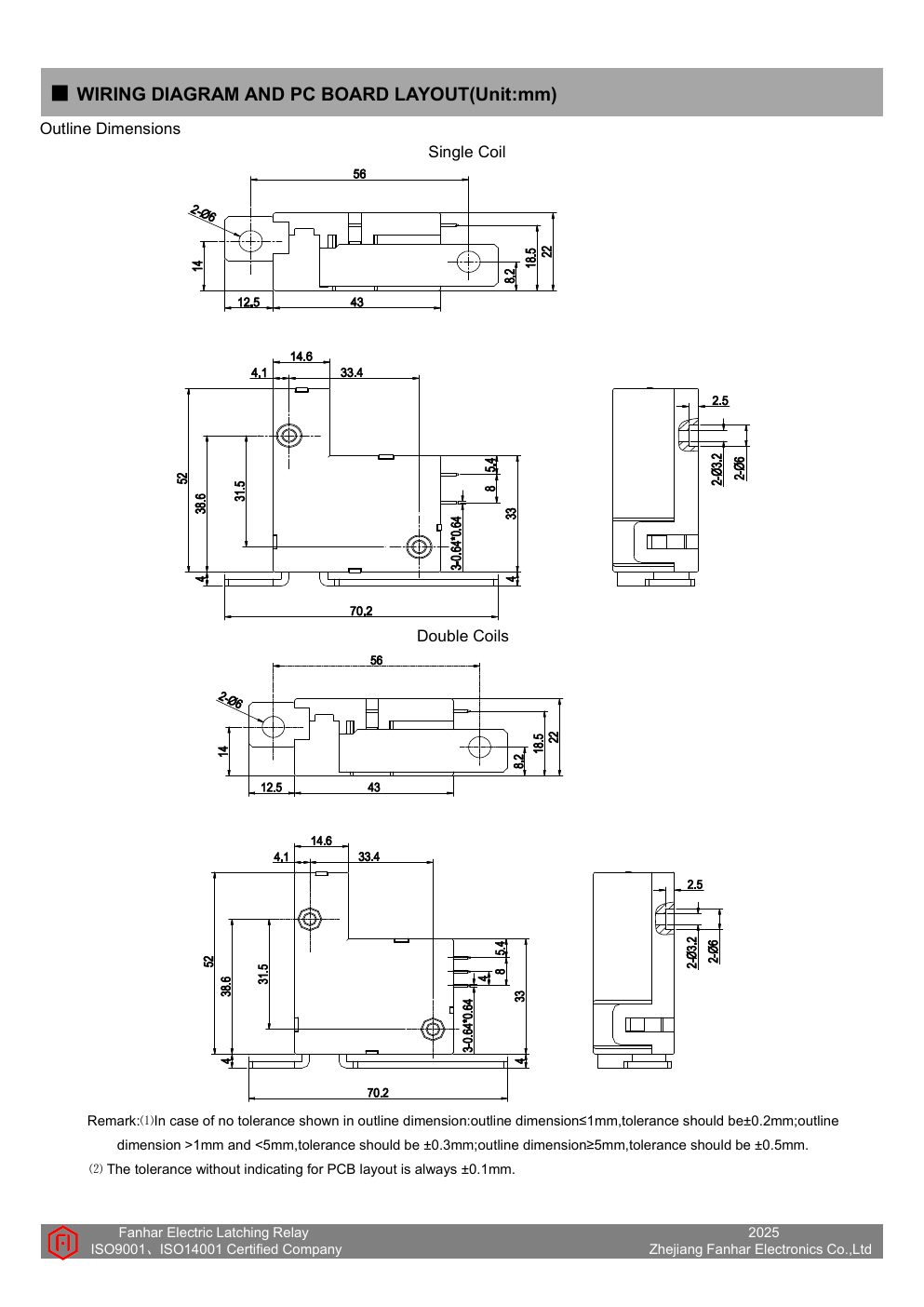

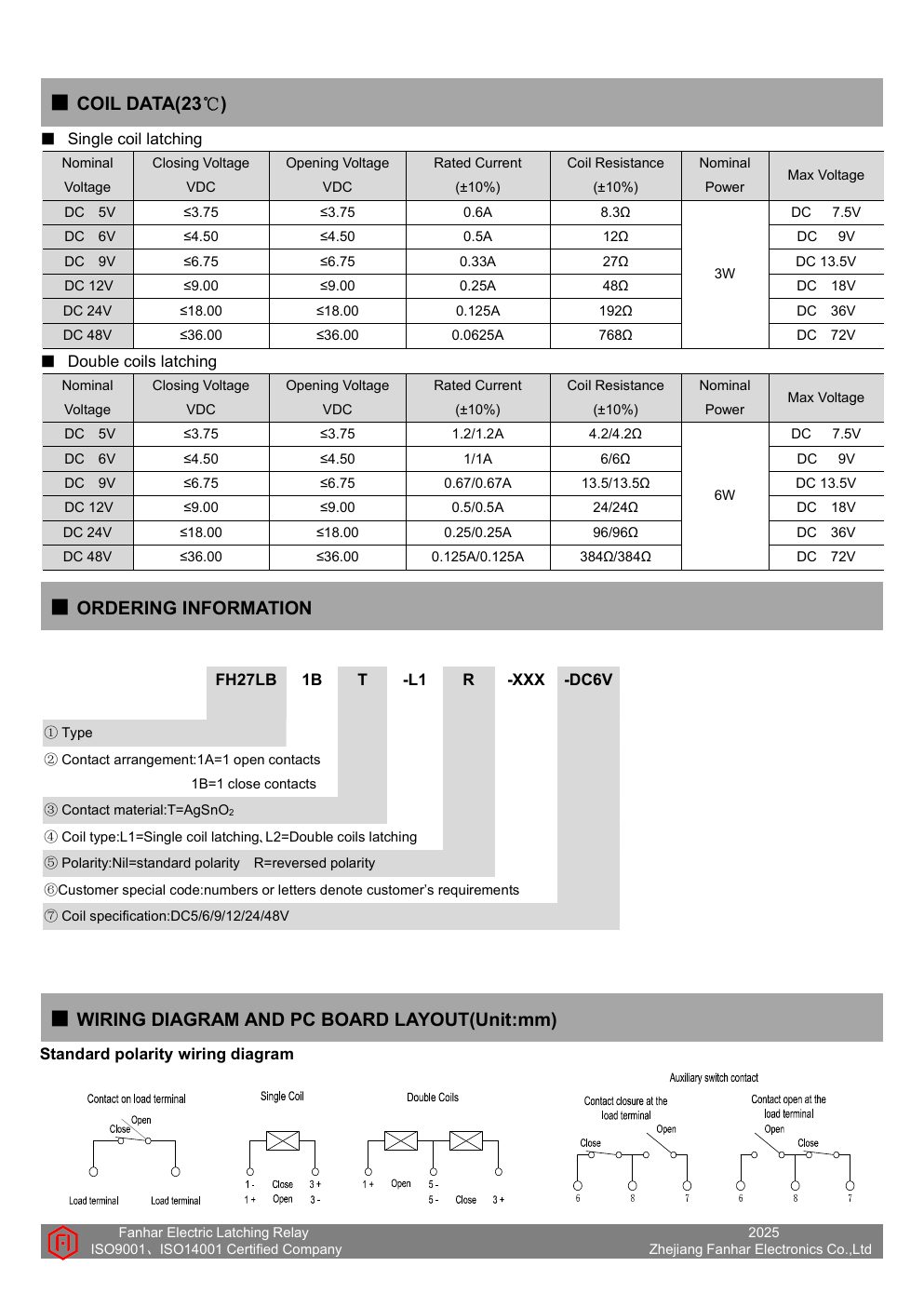

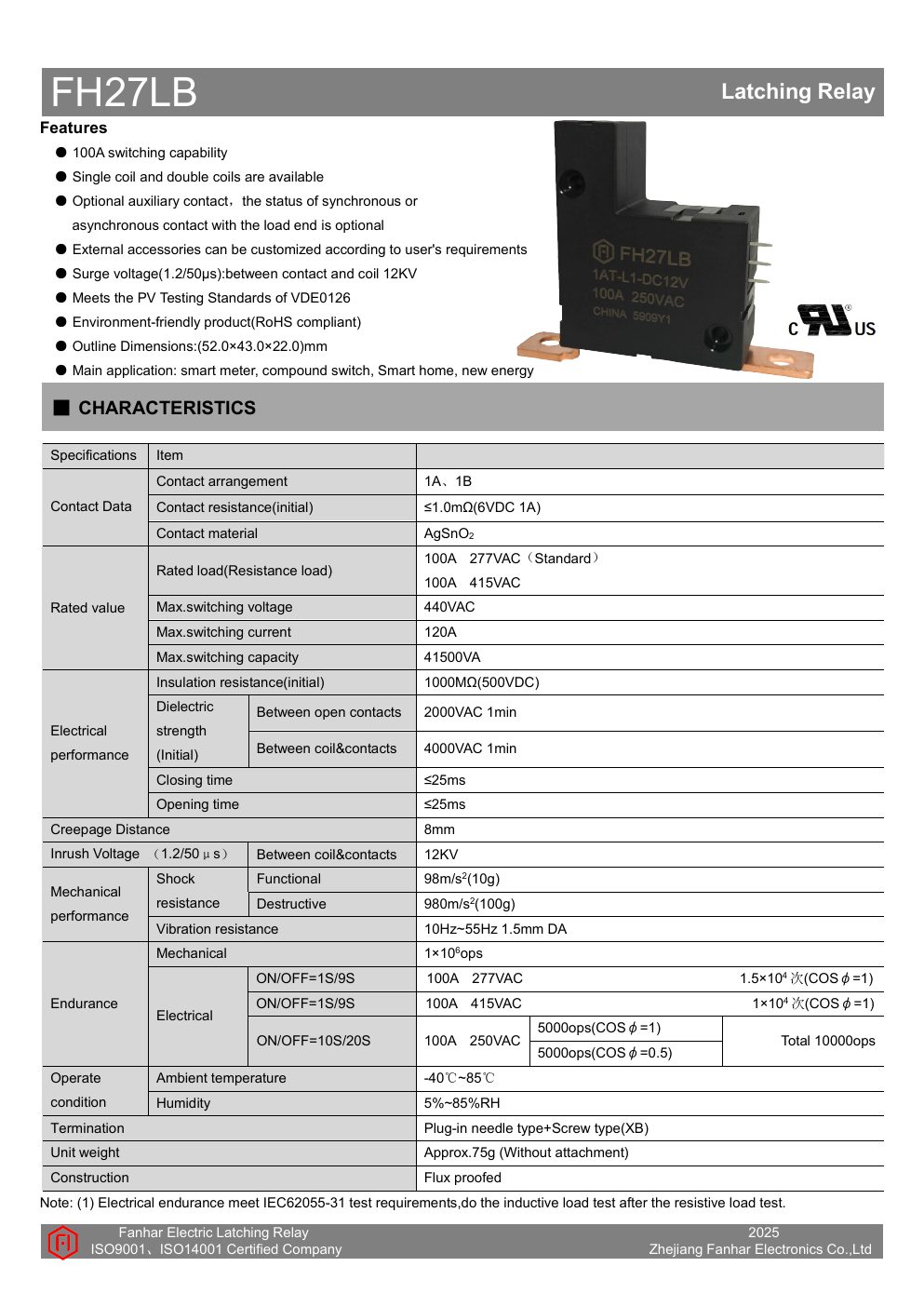

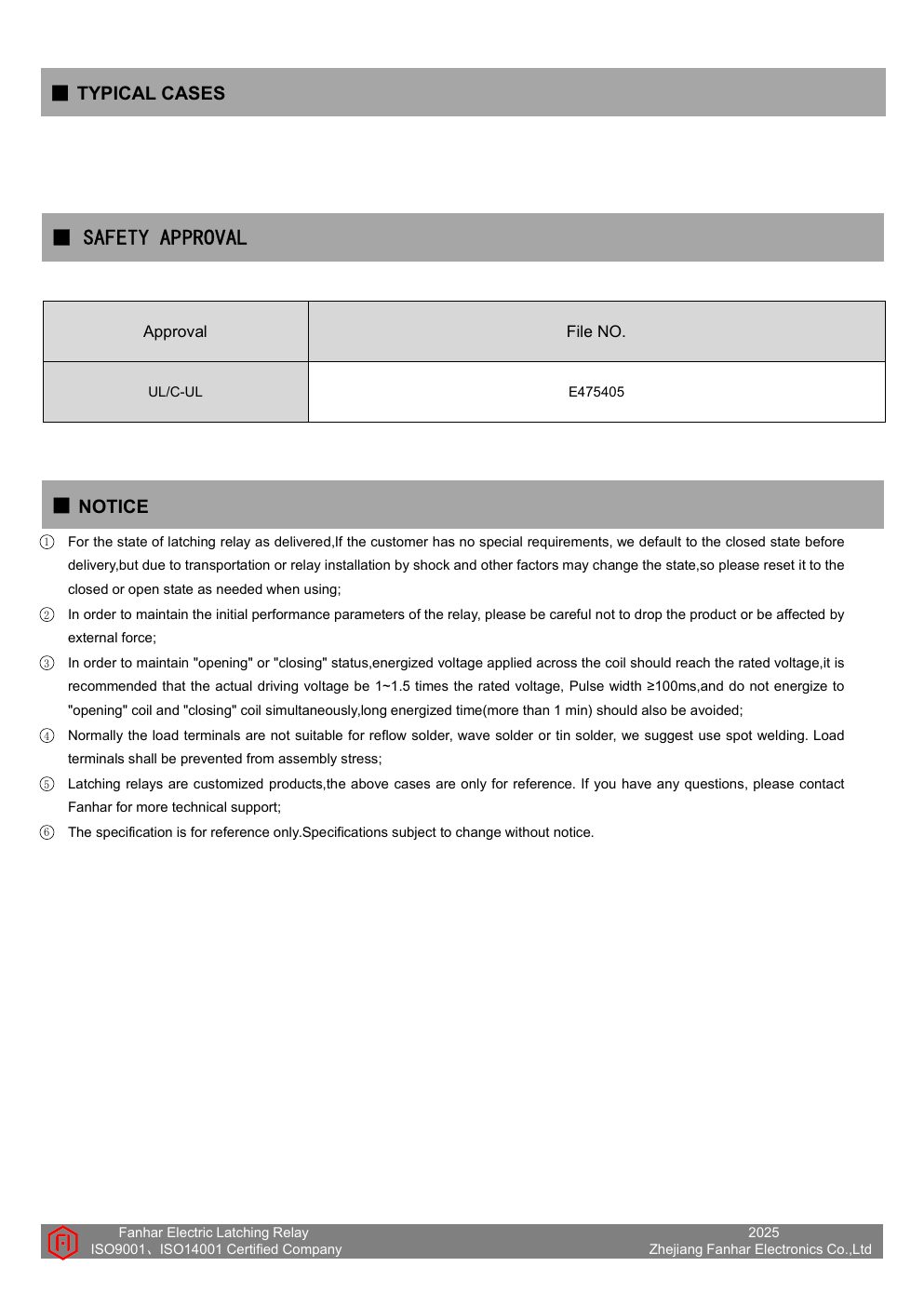

Datasheet Preview
Related products
-

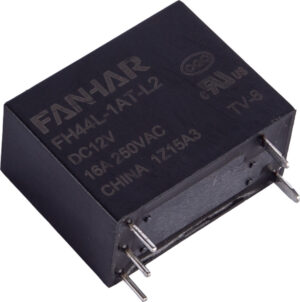

Read moreFH44L
Features
●16 A switching capability
●Singlecoilanddoublecoilsareallavailable
●Highlysensitiveproduct,coilpowerconsumptionis 250 m W
●Morelowerheight(theheightis 15.5... -
Read moreW21L
• Product type: W21L
• Dimension: 38.0×30.0×16.5mm
• Switching capacity: 90A
• Coil voltage: 5-24V
• Main applications: Smart meter, C... -

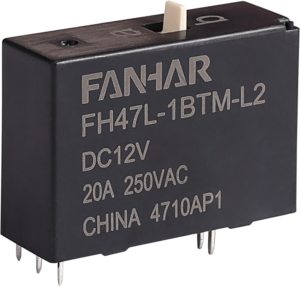

Read moreFH47L
