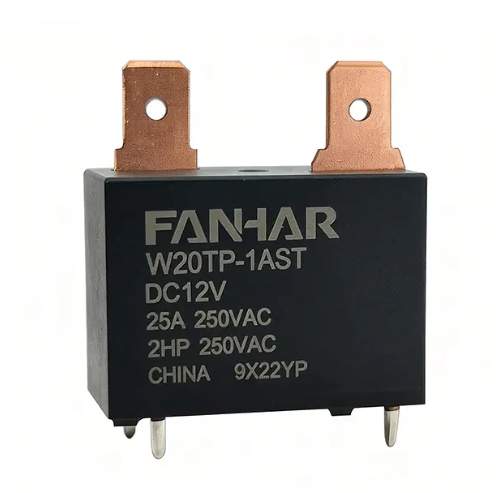

W20TP
Features
●25 A switching capability
●Contact arrangement:1 A
●Plastic sealedtypeand Flux proofedtype
●ULinsulationsystem:Class F
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(30.1×15.7×23.3)mm
●Main application:Homeappliance､Newenergyand PVindustry
Description
Features
●25 A switching capability
●Contact arrangement:1 A
●Plastic sealedtypeand Flux proofedtype
●ULinsulationsystem:Class F
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(30.1×15.7×23.3)mm
●Main application:Homeappliance､Newenergyand PVindustry
For more application info or datasheet, pls contact us to get by mail.
