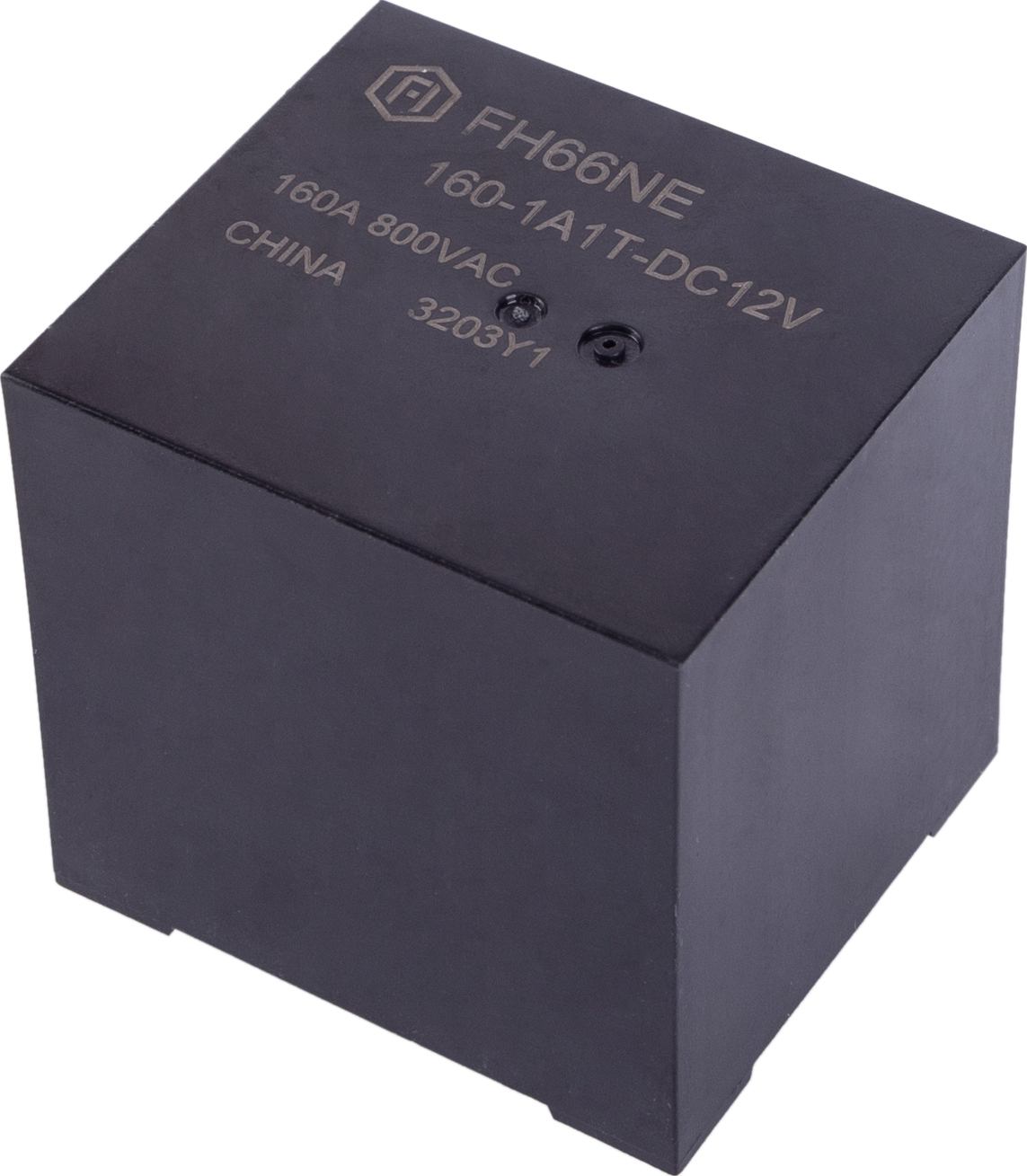

FH66NE 160A
Features
●Contactgapis 4.0 mm
●160 Acontactswitching capability
●Outline dimensions:(45 X 40 X 43)mm
●ULinsulationsystem:Class F
●Main application:PVinverter,Inverterprechargecircuitcontrol,
●Industrialcontroldevice
Description
Features
●Contactgapis 4.0 mm
●160 Acontactswitching capability
●Outline dimensions:(45 X 40 X 43)mm
●ULinsulationsystem:Class F
●Main application:PVinverter,Inverterprechargecircuitcontrol,
●Industrialcontroldevice
For more application info or datasheet, pls contact us to get by mail.

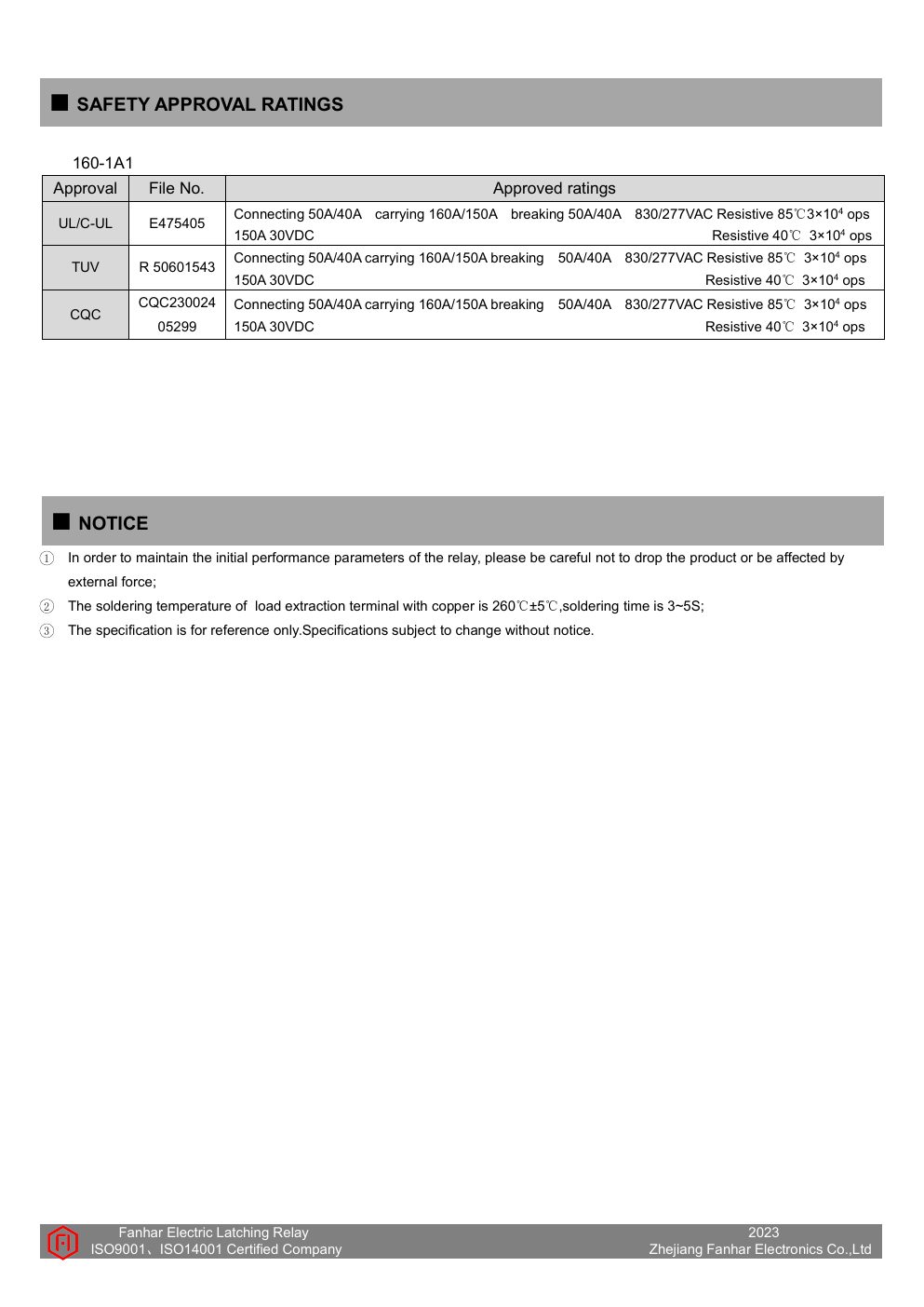

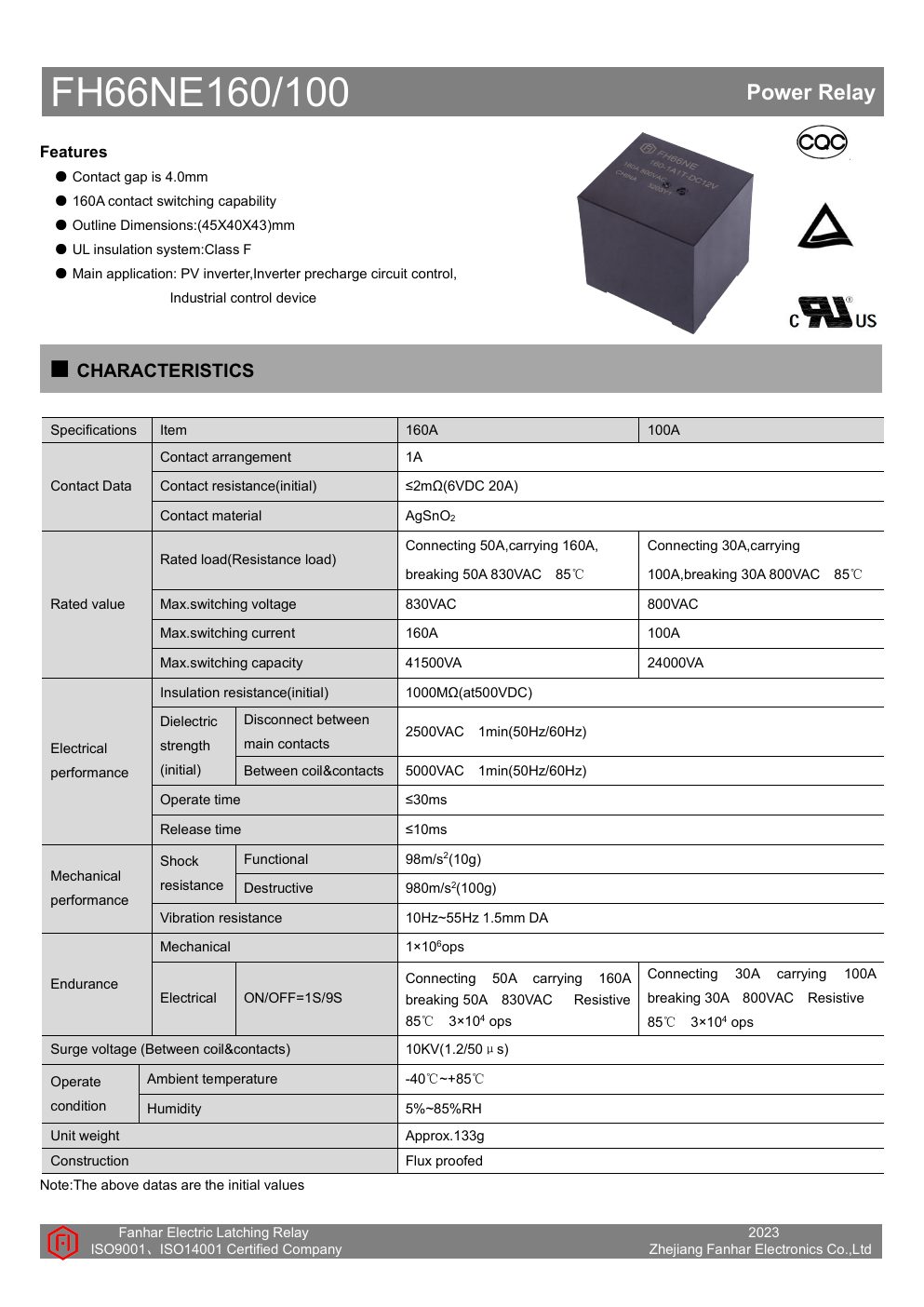

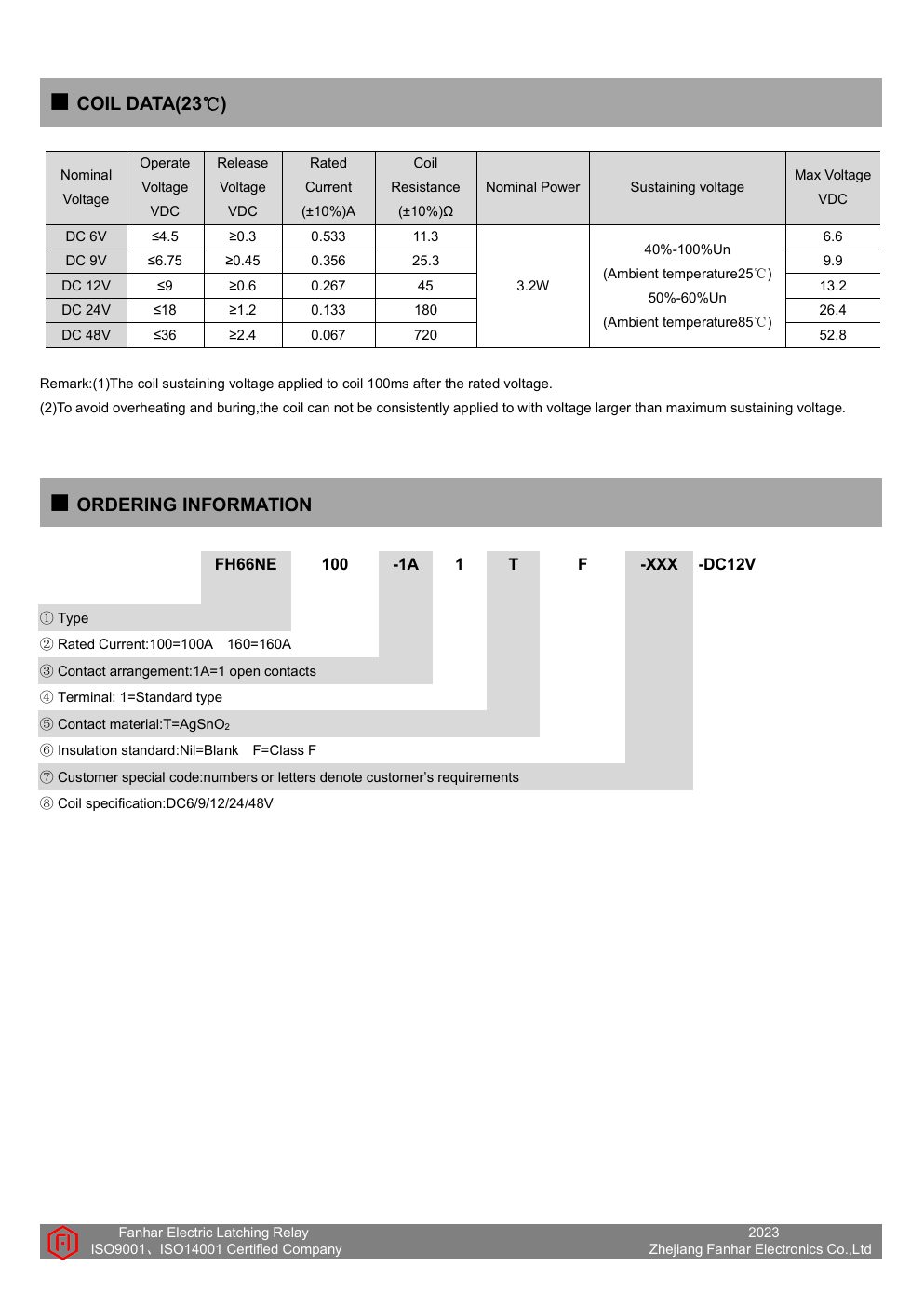

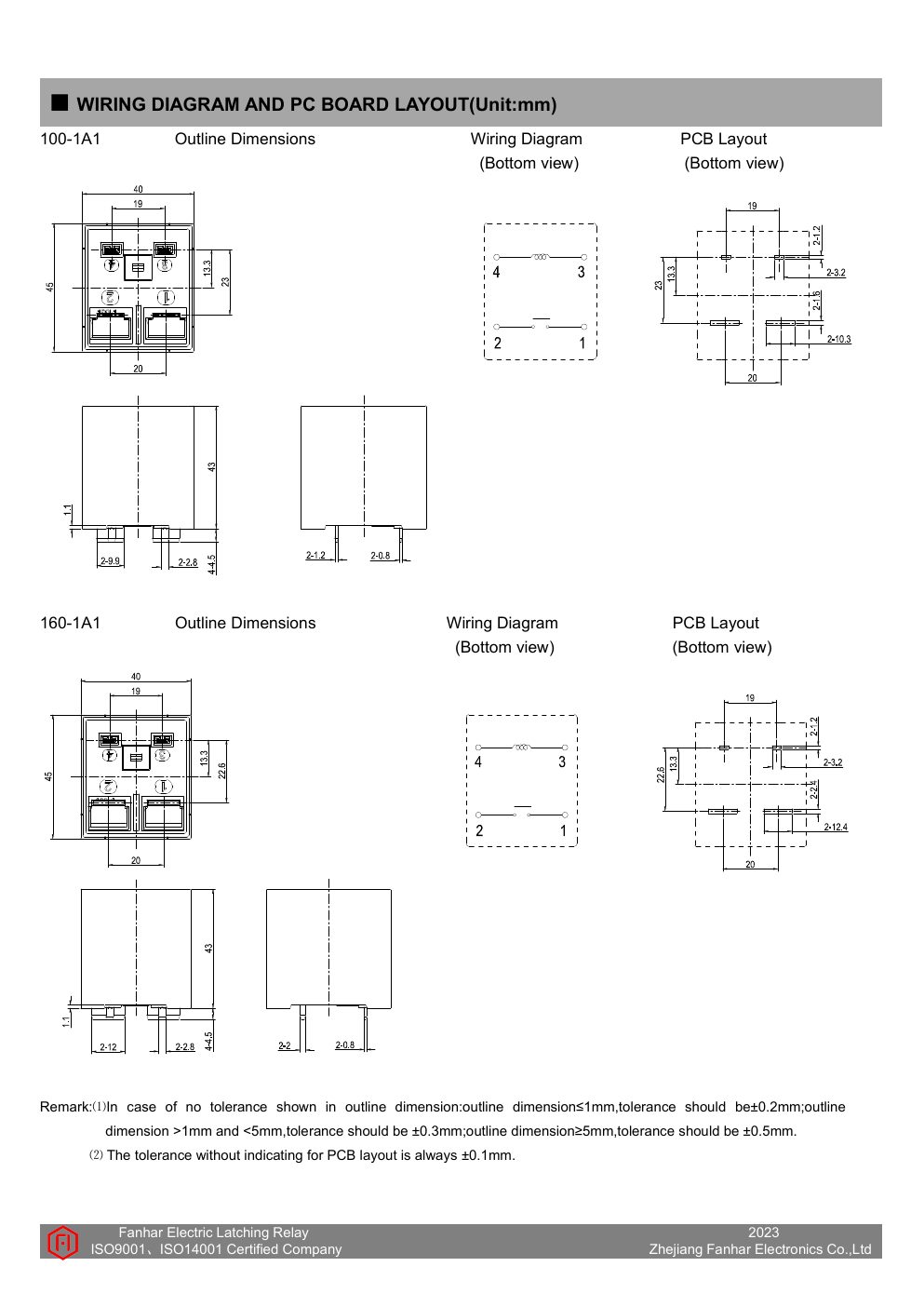

Datasheet Preview
