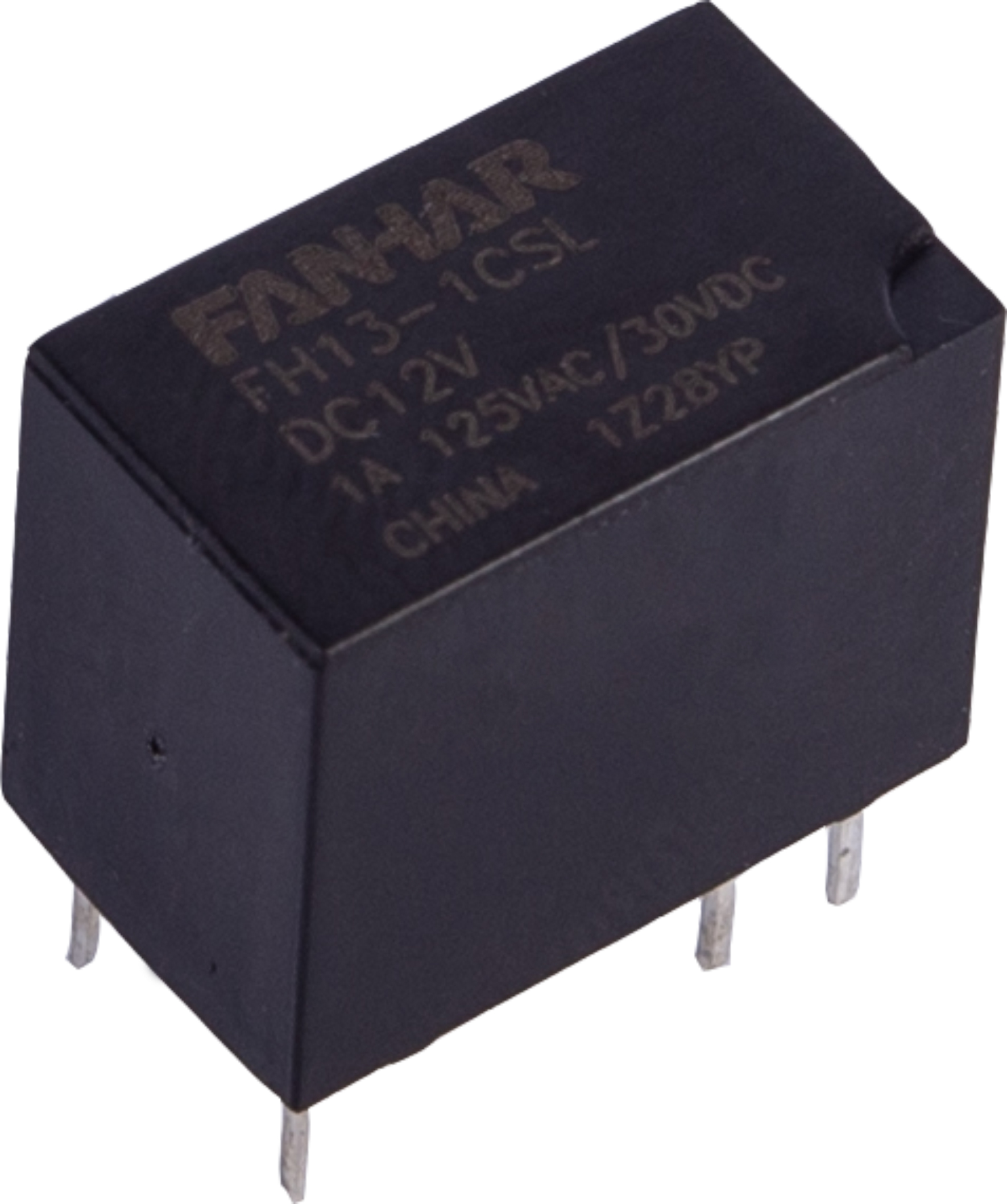

FH13
Features
●1 A switching capability
●Highsensitivetype,coilpoweris 150 m W
●Standard DIPConstructionterminal
●Ultra-smalltype,gold-platedcontacts
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(12.5×7.5×10)mm
●Main application:Electricpowerprotection､Automation､communication
Description
Features
●1 A switching capability
●Highsensitivetype,coilpoweris 150 m W
●Standard DIPConstructionterminal
●Ultra-smalltype,gold-platedcontacts
●Environment-friendly product(Ro HS compliant)
●Outline dimensions:(12.5×7.5×10)mm
●Main application:Electricpowerprotection､Automation､communication
For more application info or datasheet, pls contact us to get by mail.

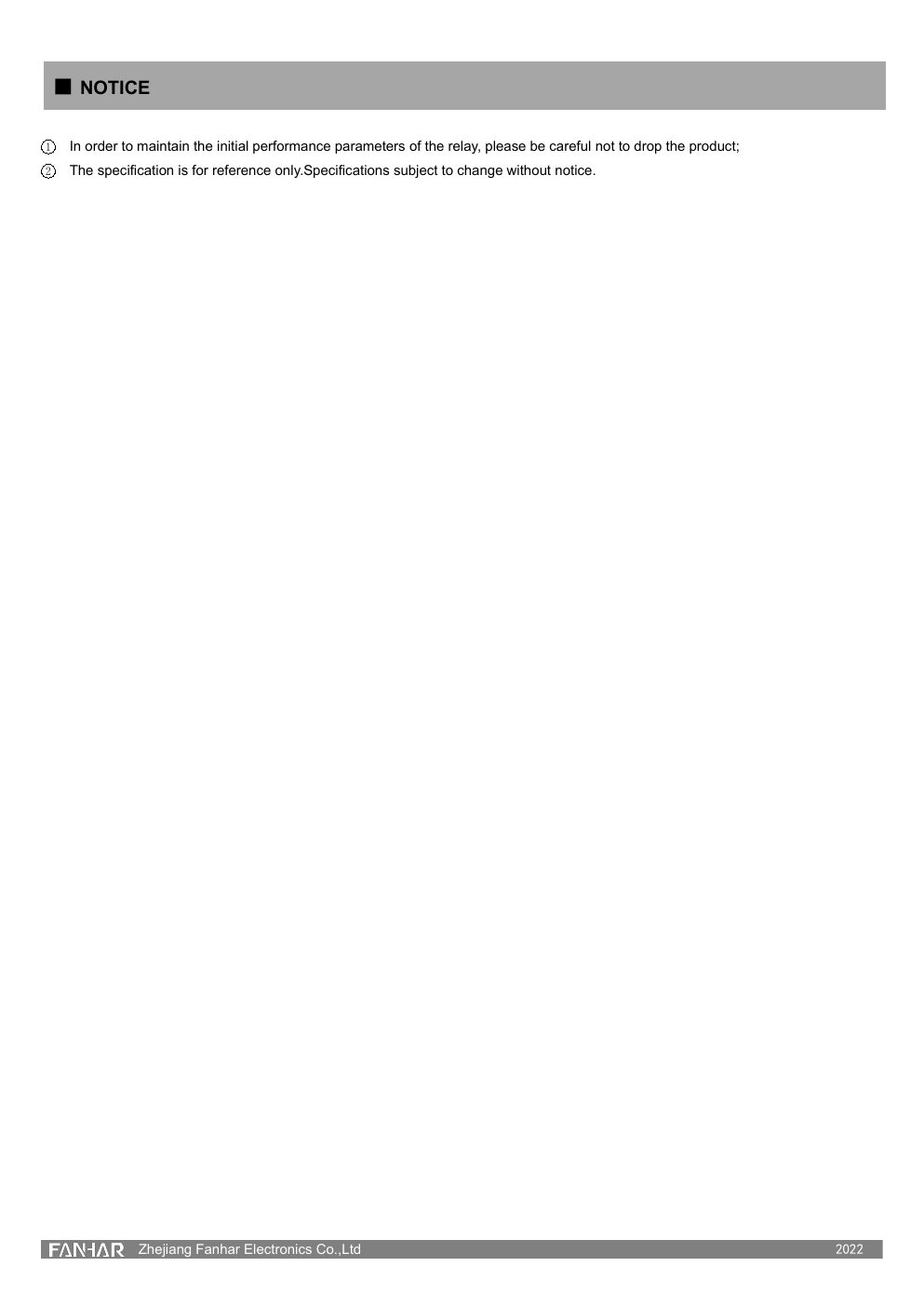

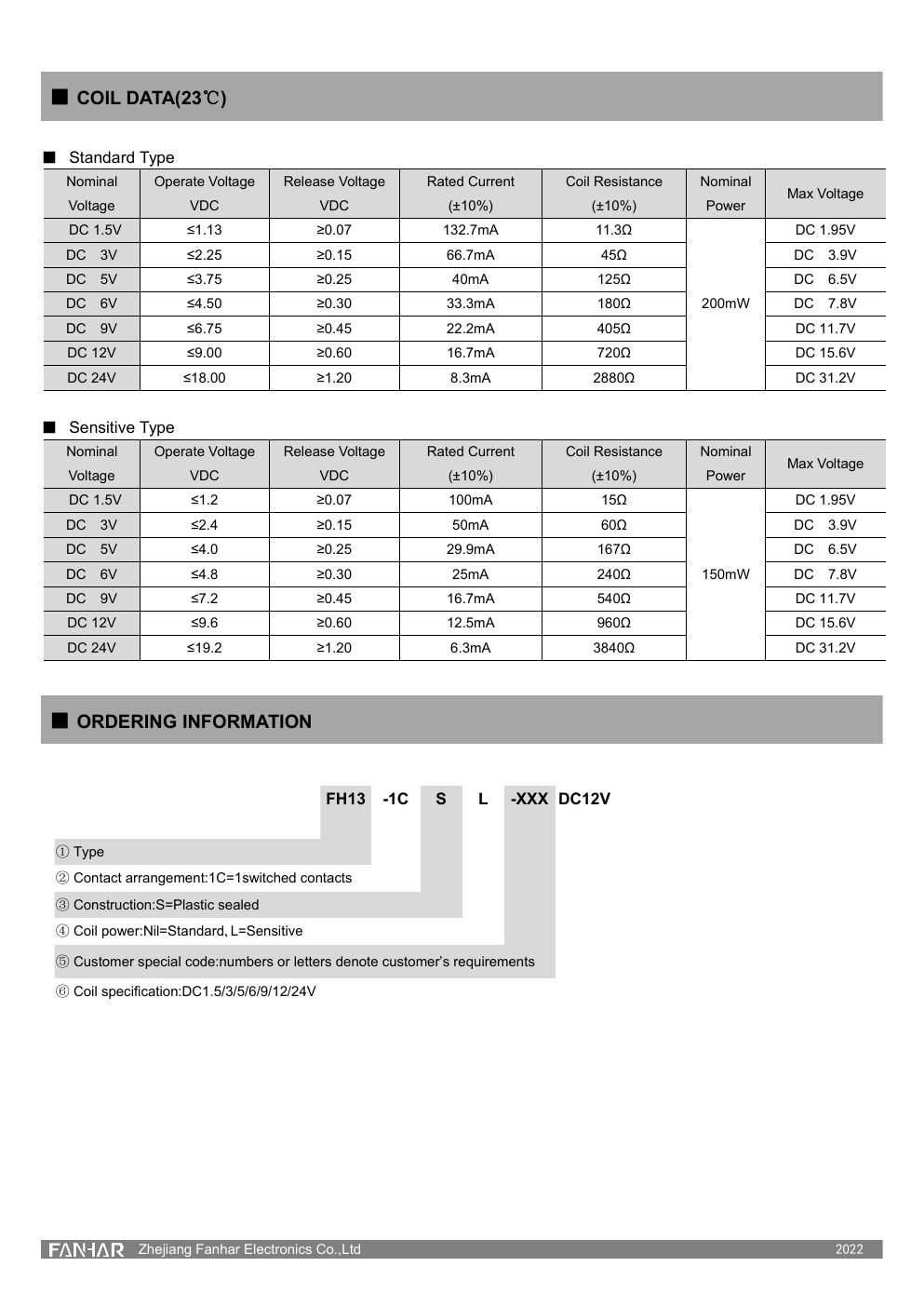

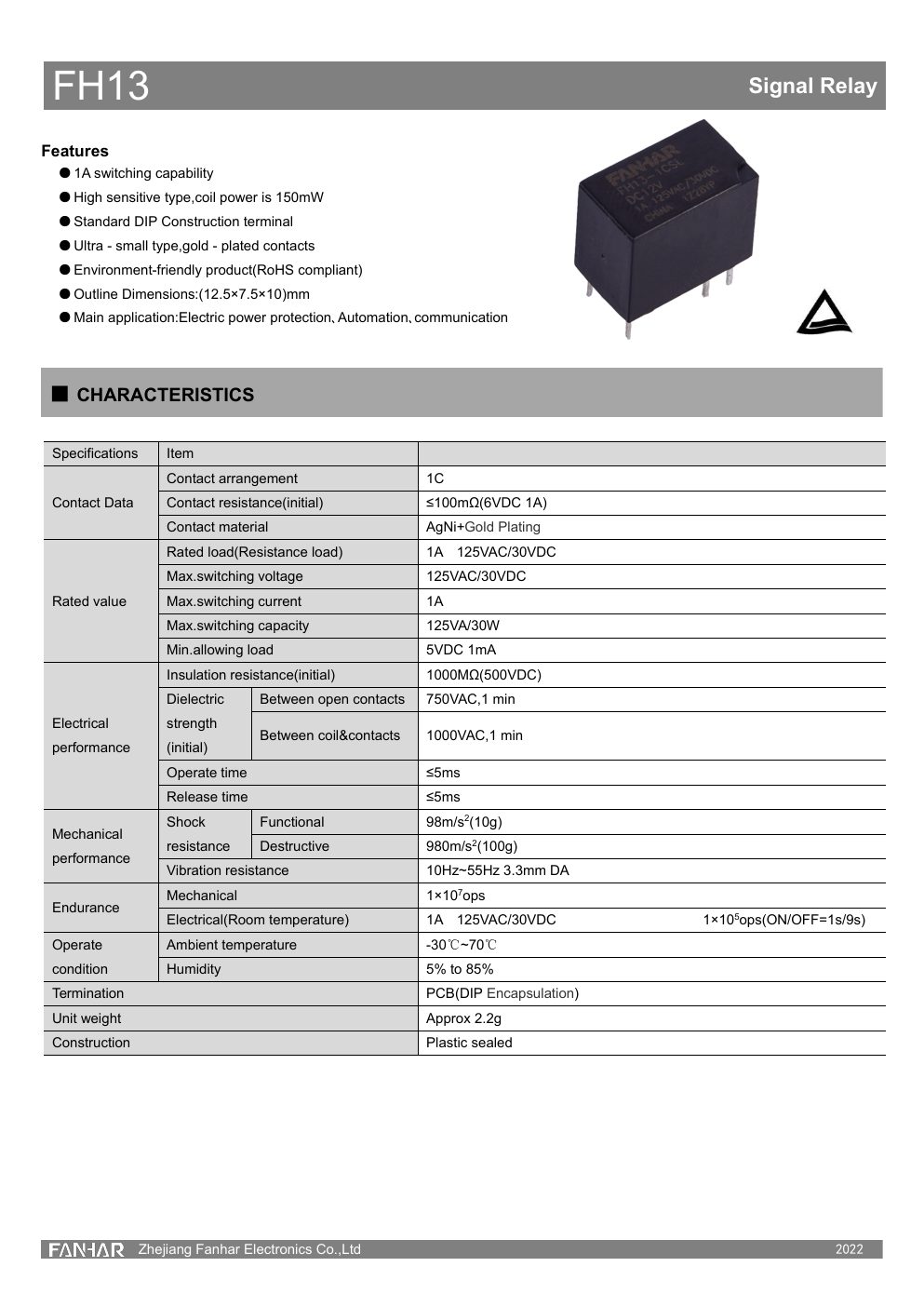

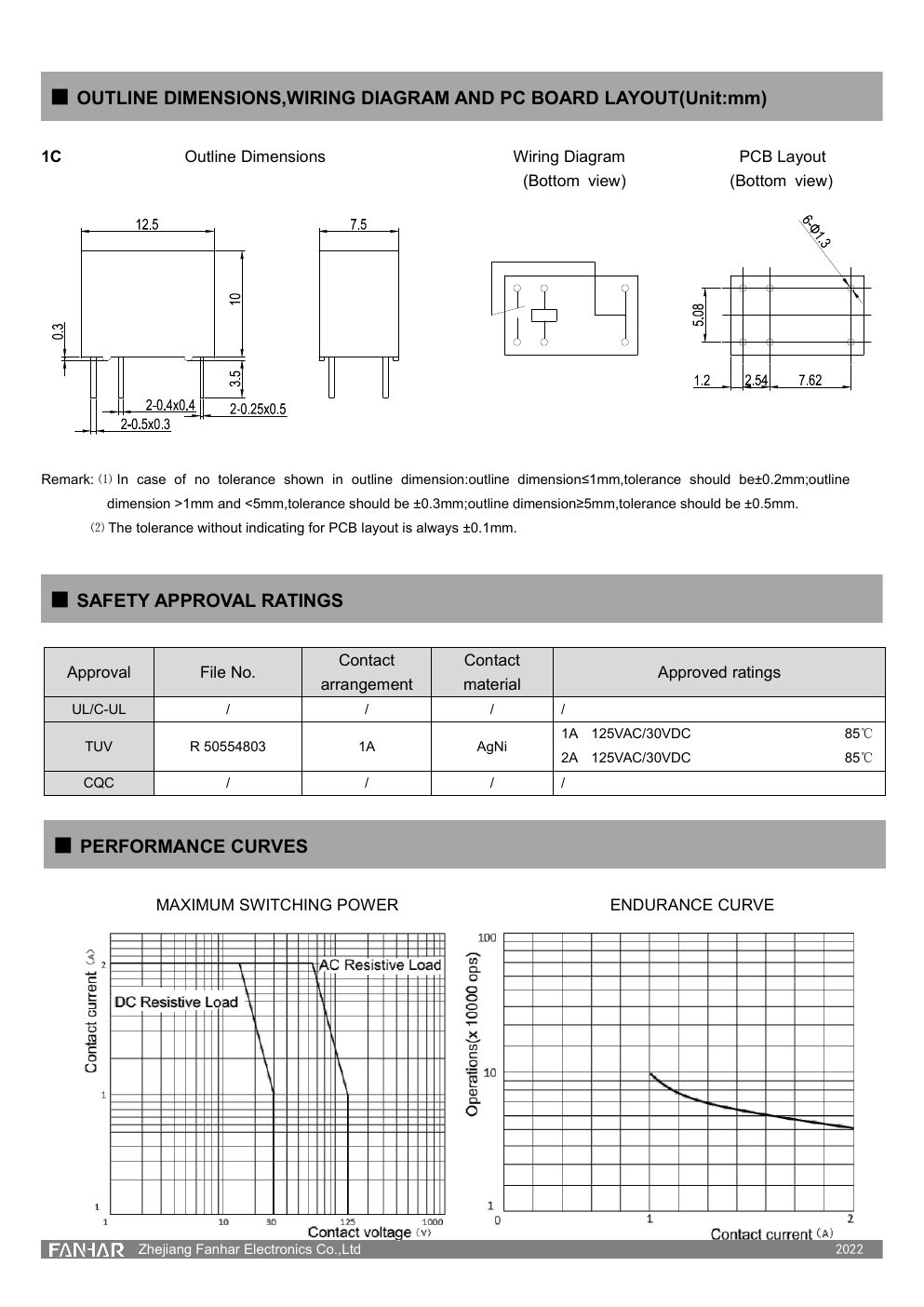

Datasheet Preview
