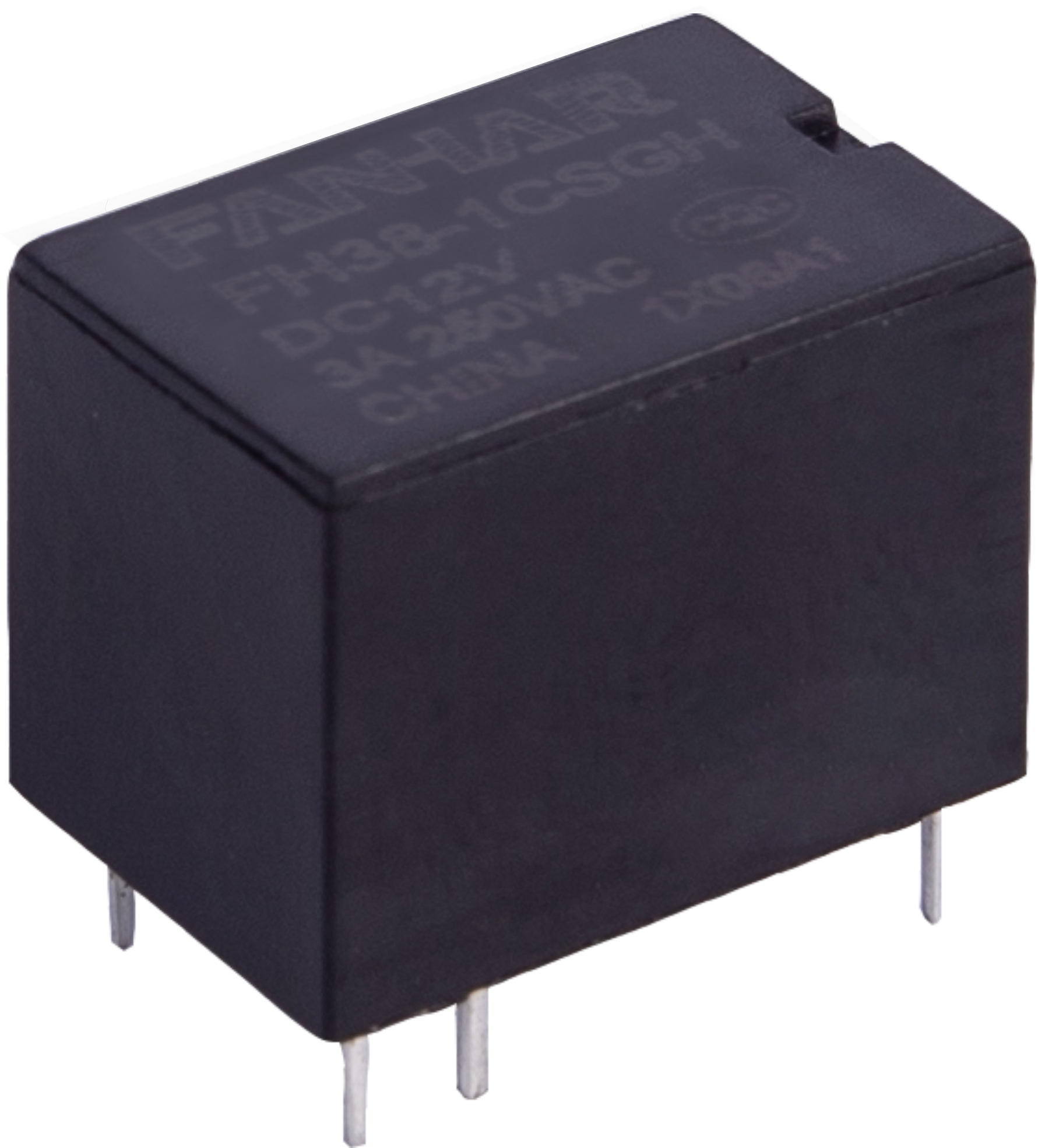

FH38
Features
●3 A switching capability
●Contact arrangement:1 C
●Highsensitivity,coilpoweris 200 m W
●Standarddual-in-lineterminal(DIPConstruction)
●Ultra-smalltype､goldplatedcontact
●Environment-friendly product(Ro HS compliant)
●Outline dimensions::(15.5×10.5×11.5)mm
●Main application:Powerprotection,Automation,Communication
Description
Features
●3 A switching capability
●Contact arrangement:1 C
●Highsensitivity,coilpoweris 200 m W
●Standarddual-in-lineterminal(DIPConstruction)
●Ultra-smalltype､goldplatedcontact
●Environment-friendly product(Ro HS compliant)
●Outline dimensions::(15.5×10.5×11.5)mm
●Main application:Powerprotection,Automation,Communication
For more application info or datasheet, pls contact us to get by mail.

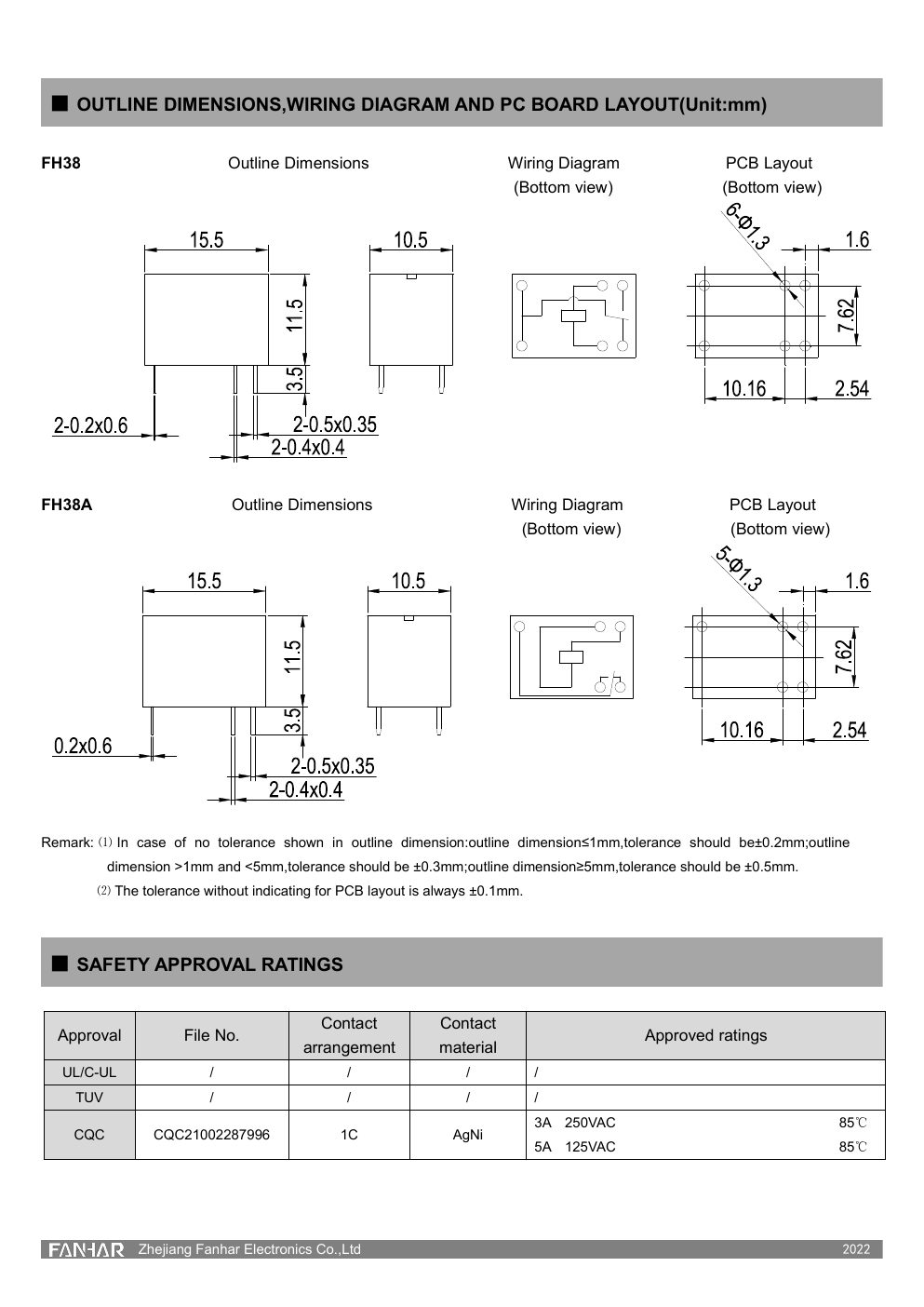

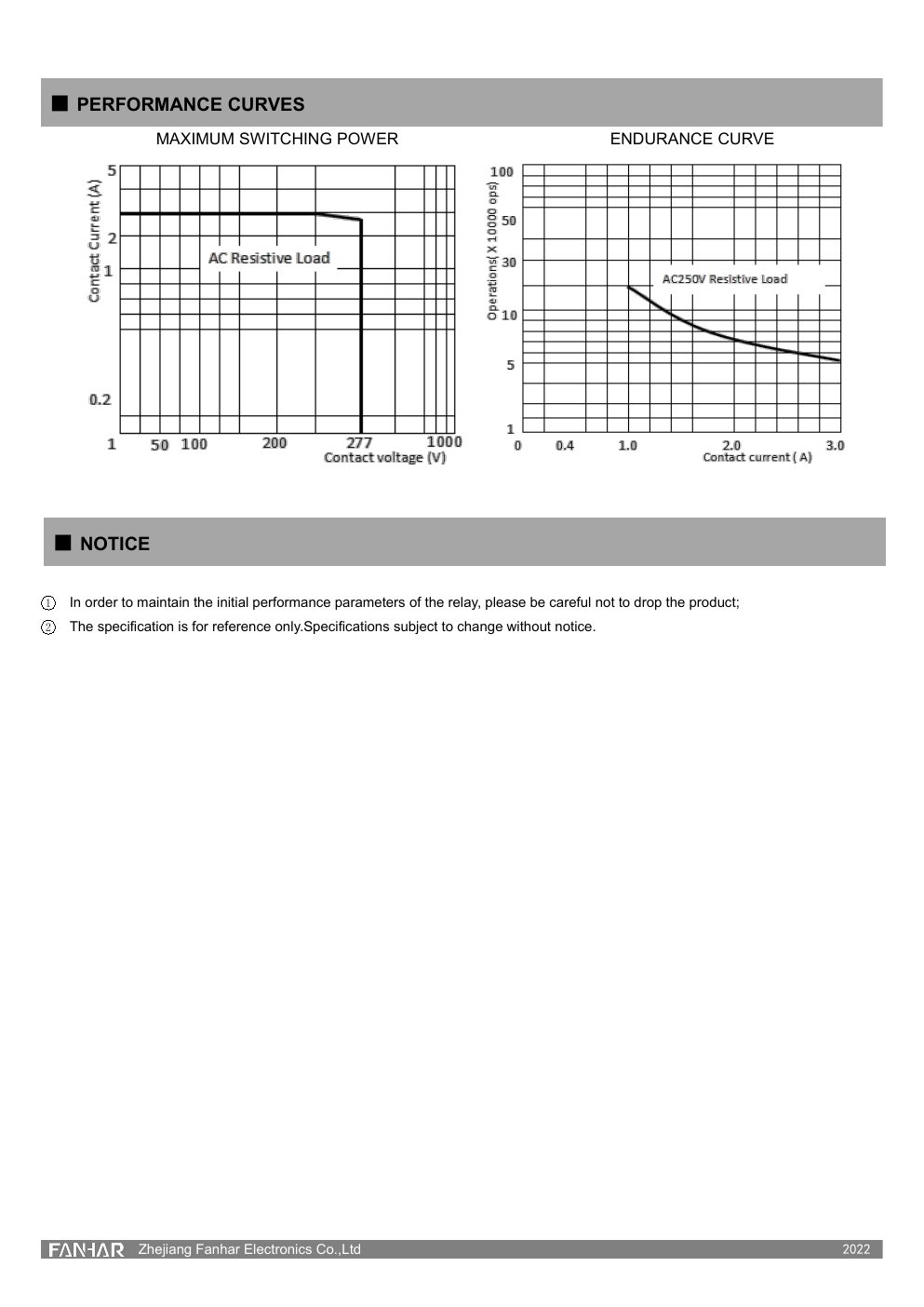

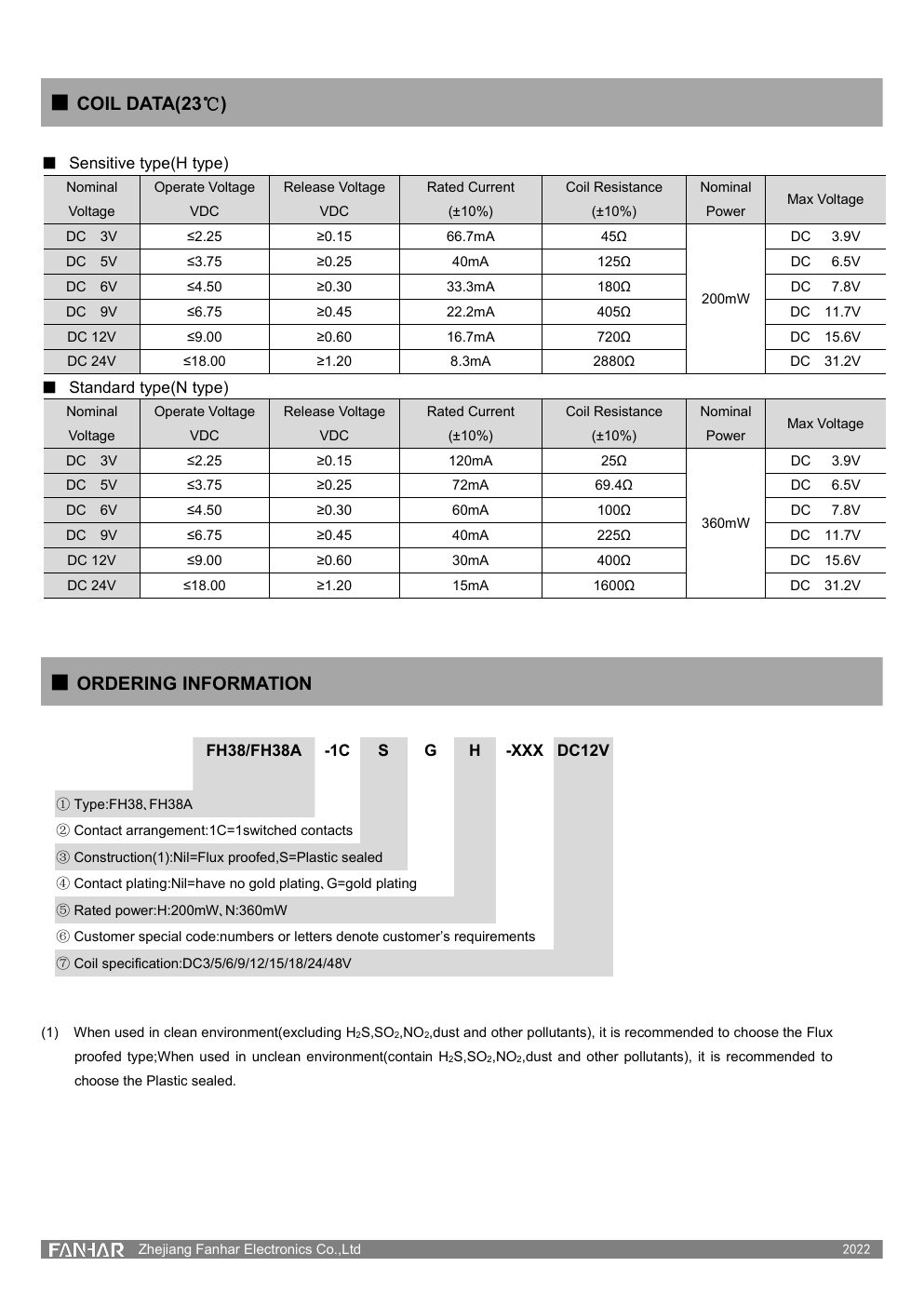

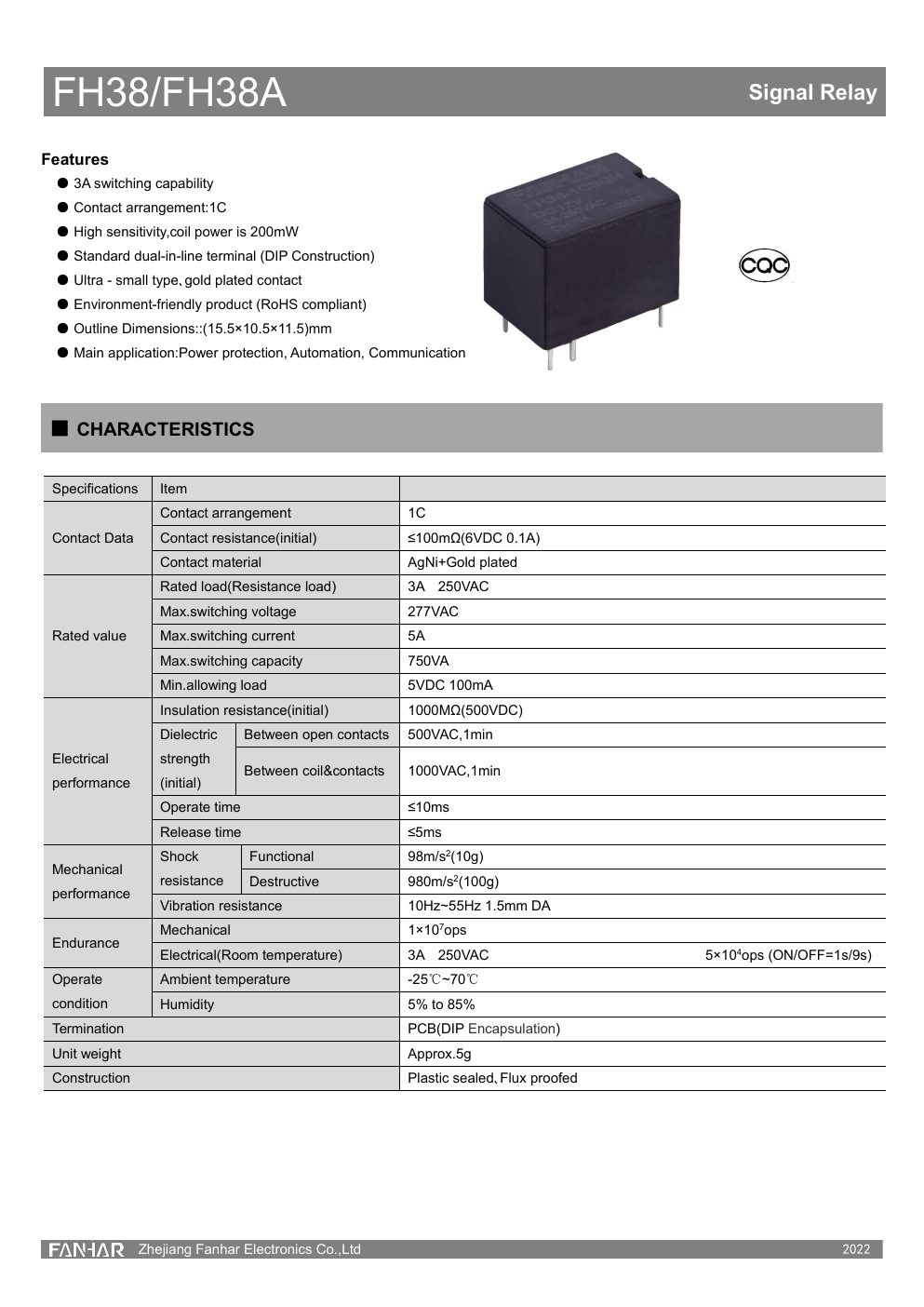

Datasheet Preview
