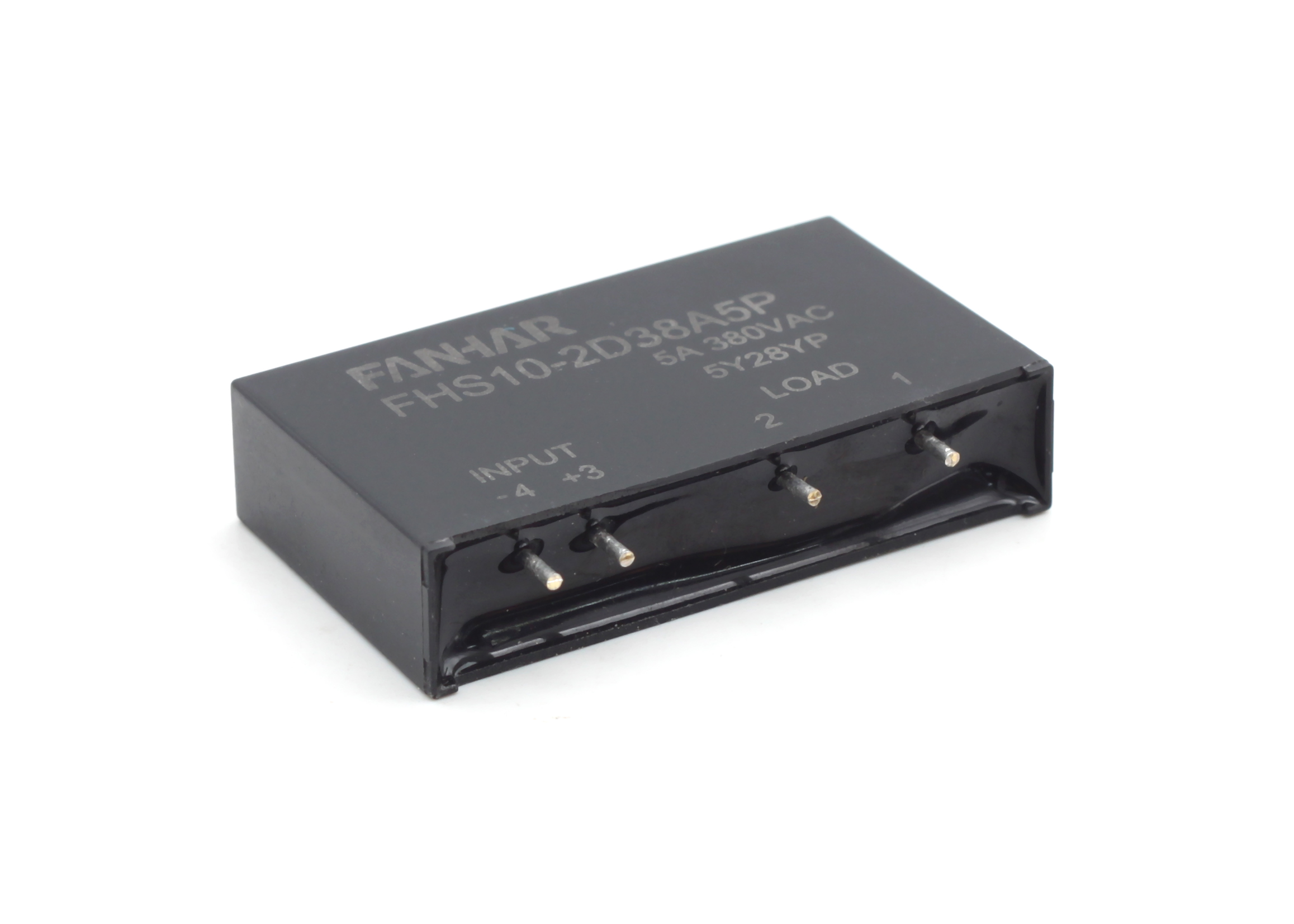

FHS10
Features
●Non-contact switch has long life, high reliability, fast switching speed and low control power
●Load current 5 A 75 VAC~264 VAC
●Photoelectric isolation, dielectric strength 2500 VAC
●TTL compatible
●PCB mounting,
●Environment-friendly product(Ro HS compliant)
●Outline Dimensions:( 44.5×10.5×26)mm
●Main uses: electromagnetic valves, electric motors, incandescent
●lamps, communication and network equipment, computer terminal products,
●digital audio, video equipment, control systems, and instruments, medical devices, entertainment facilities, etc.；
●GB/T 36640-2018;IEC 62314:2006
Description
Features
●Non-contact switch has long life, high reliability, fast switching speed and low control power
●Load current 5 A 75 VAC~264 VAC
●Photoelectric isolation, dielectric strength 2500 VAC
●TTL compatible
●PCB mounting,
●Environment-friendly product(Ro HS compliant)
●Outline Dimensions:( 44.5×10.5×26)mm
●Main uses: electromagnetic valves, electric motors, incandescent
●lamps, communication and network equipment, computer terminal products,
●digital audio, video equipment, control systems, and instruments, medical devices, entertainment facilities, etc.；
●GB/T 36640-2018;IEC 62314:2006
For more application info or datasheet, pls contact us to get by mail.

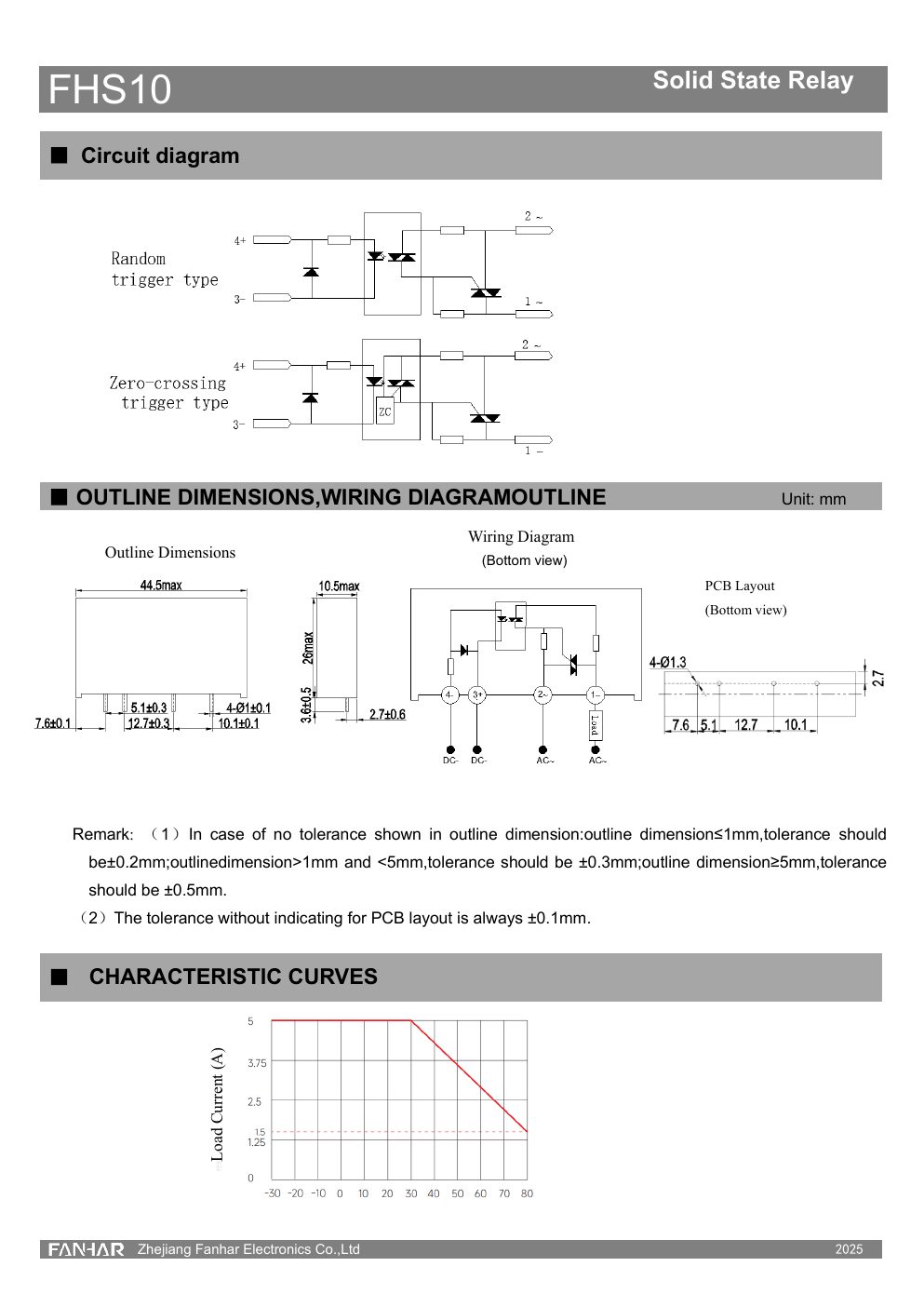

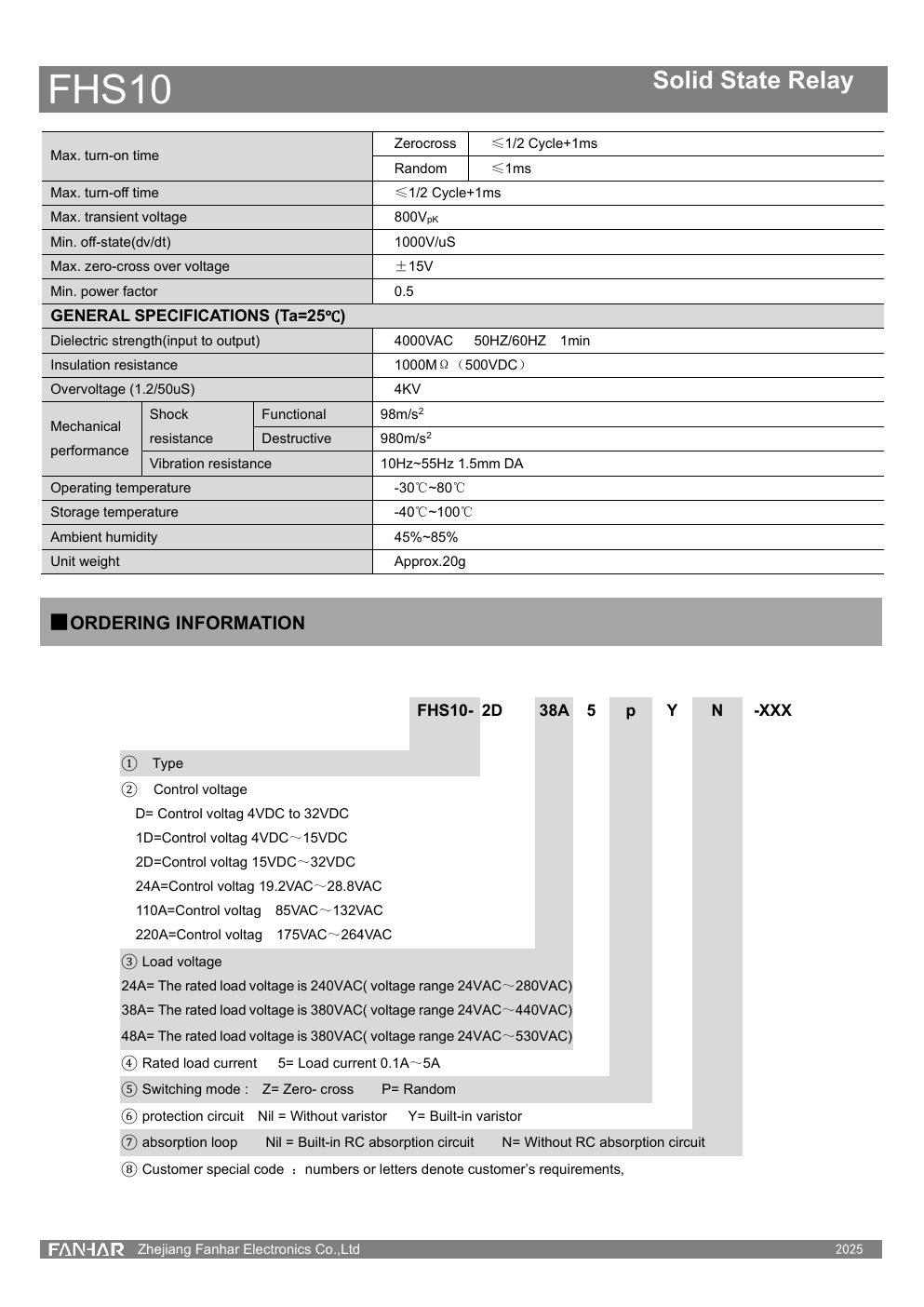

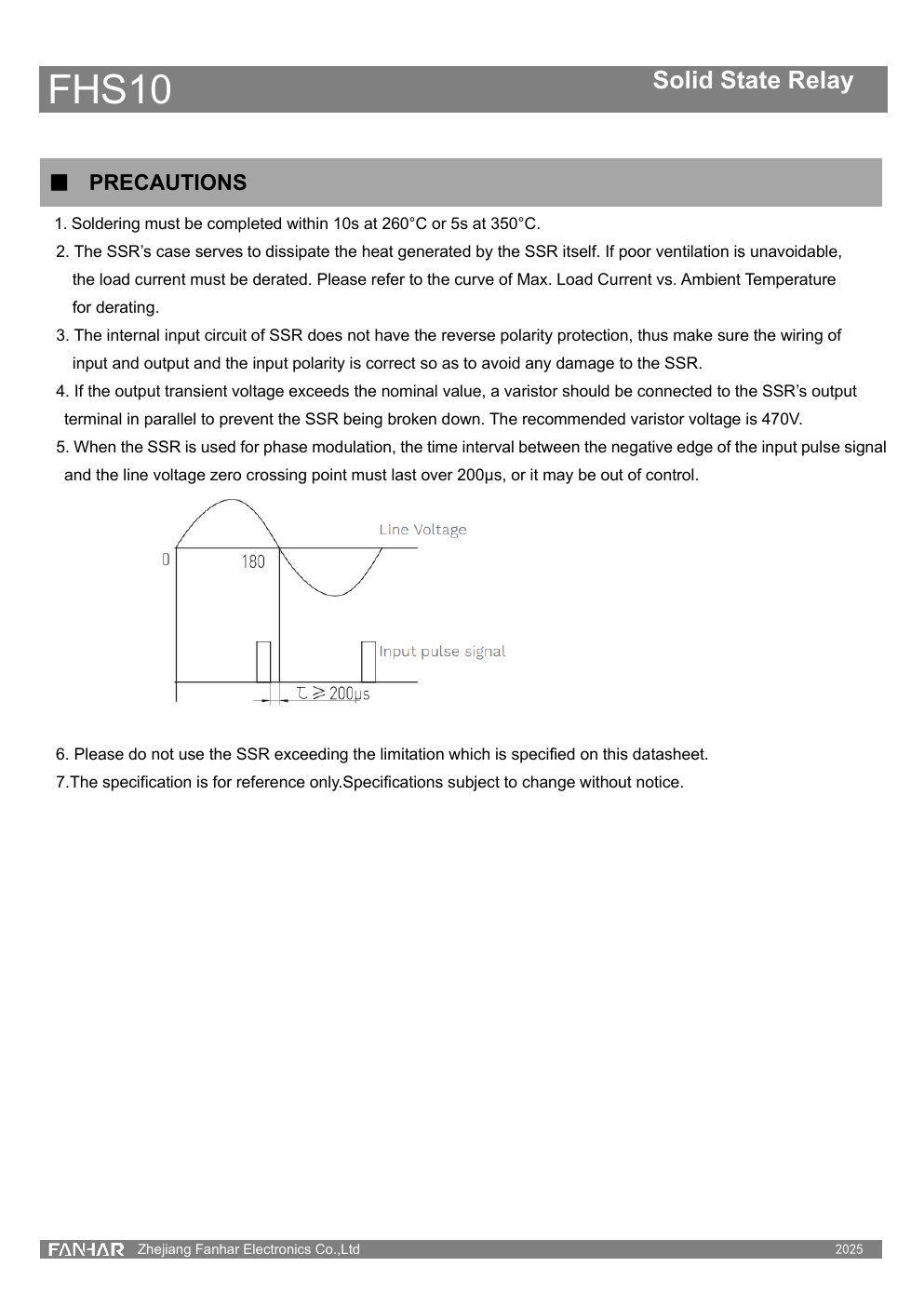

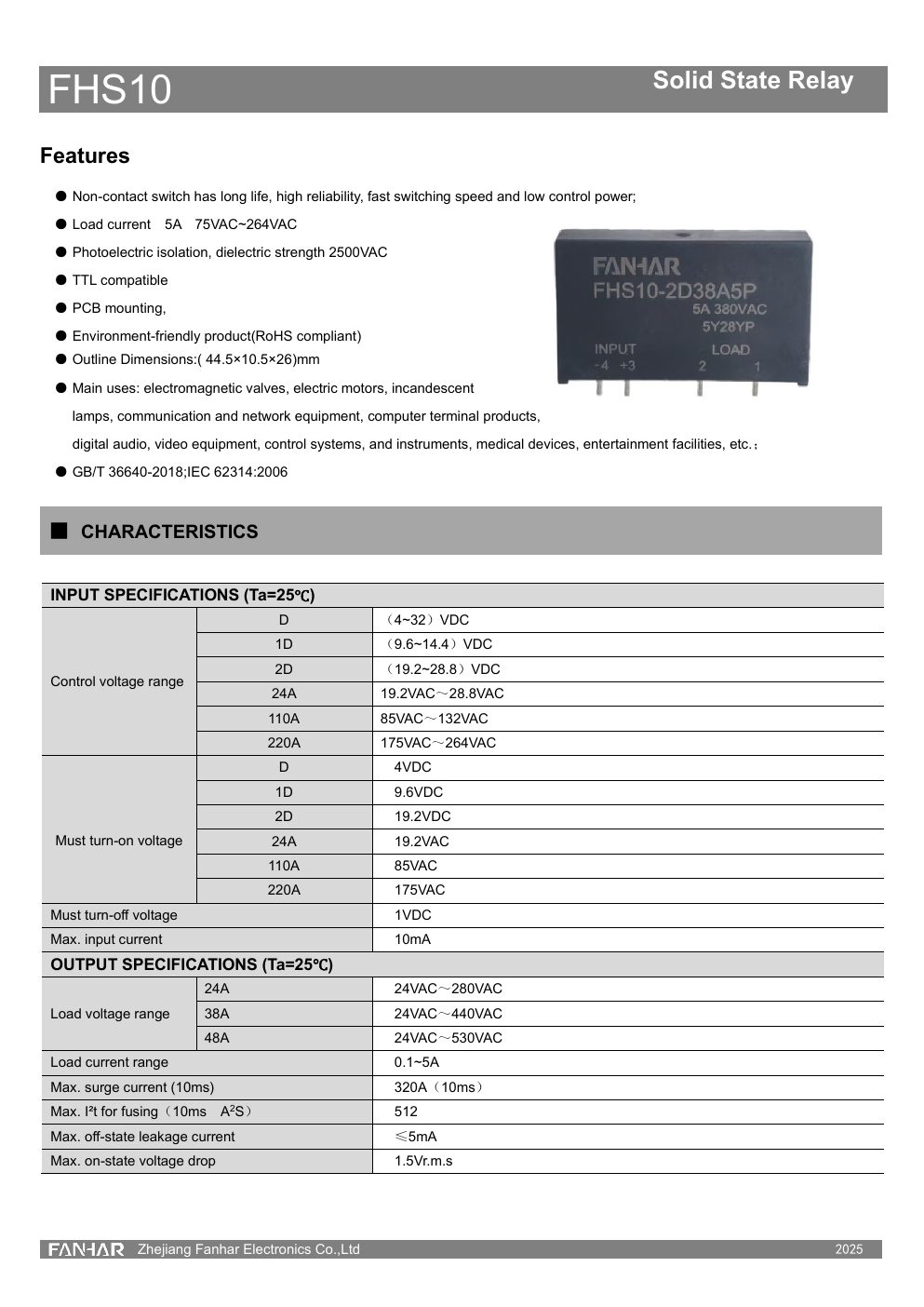

Datasheet Preview
