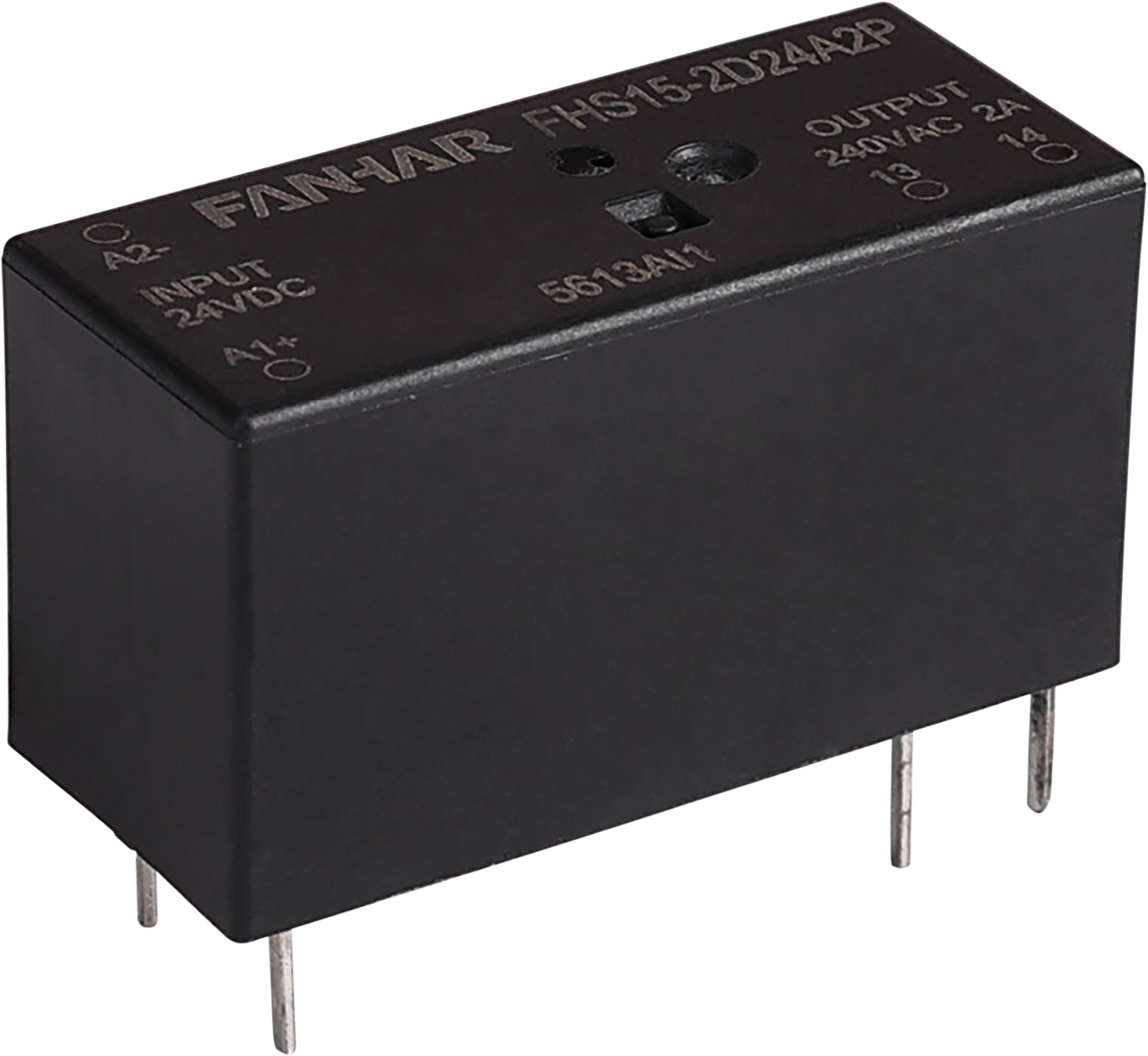

FHS15
Features
● Non-contact switch has long life, high reliability, fast switching speed and low control power;
● Load current 2A 75VAC~264VAC
● (AC) Solid State Relay，Width only 15.7mm
● Photoelectric isolation, dielectric strength 2500VAC
● TTL compatible
● PCB mounting, also socket mounting (15 series)
● Environment-friendly product(RoHS compliant)
● Outline Dimensions:( 29.0×12.7×15.7)mm
● Main uses: electromagnetic valves, electric motors, incandescent
lamps, communication and network equipment, computer terminal products,
digital audio, video equipment, control systems, and instruments, medical devices, entertainment facilities, etc.；
● GB/T 36640-2018;IEC 62314:2006
Description
Features
● Non-contact switch has long life, high reliability, fast switching speed and low control power;
● Load current 2A 75VAC~264VAC
● (AC) Solid State Relay，Width only 15.7mm
● Photoelectric isolation, dielectric strength 2500VAC
● TTL compatible
● PCB mounting, also socket mounting (15 series)
● Environment-friendly product(RoHS compliant)
● Outline Dimensions:( 29.0×12.7×15.7)mm
● Main uses: electromagnetic valves, electric motors, incandescent
lamps, communication and network equipment, computer terminal products,
digital audio, video equipment, control systems, and instruments, medical devices, entertainment facilities, etc.；
● GB/T 36640-2018;IEC 62314:2006
For more application info or datasheet, pls contact us to get by mail.

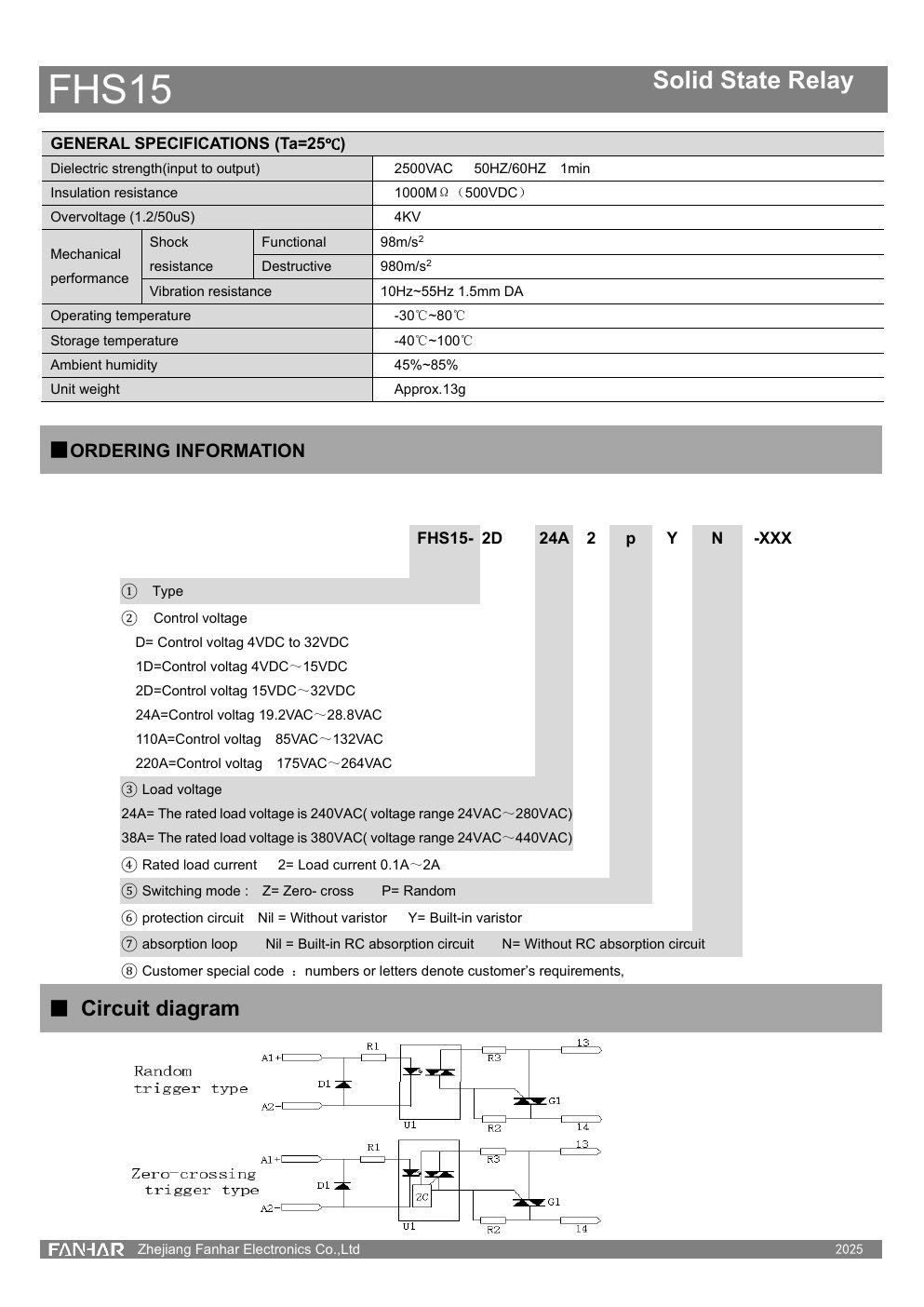

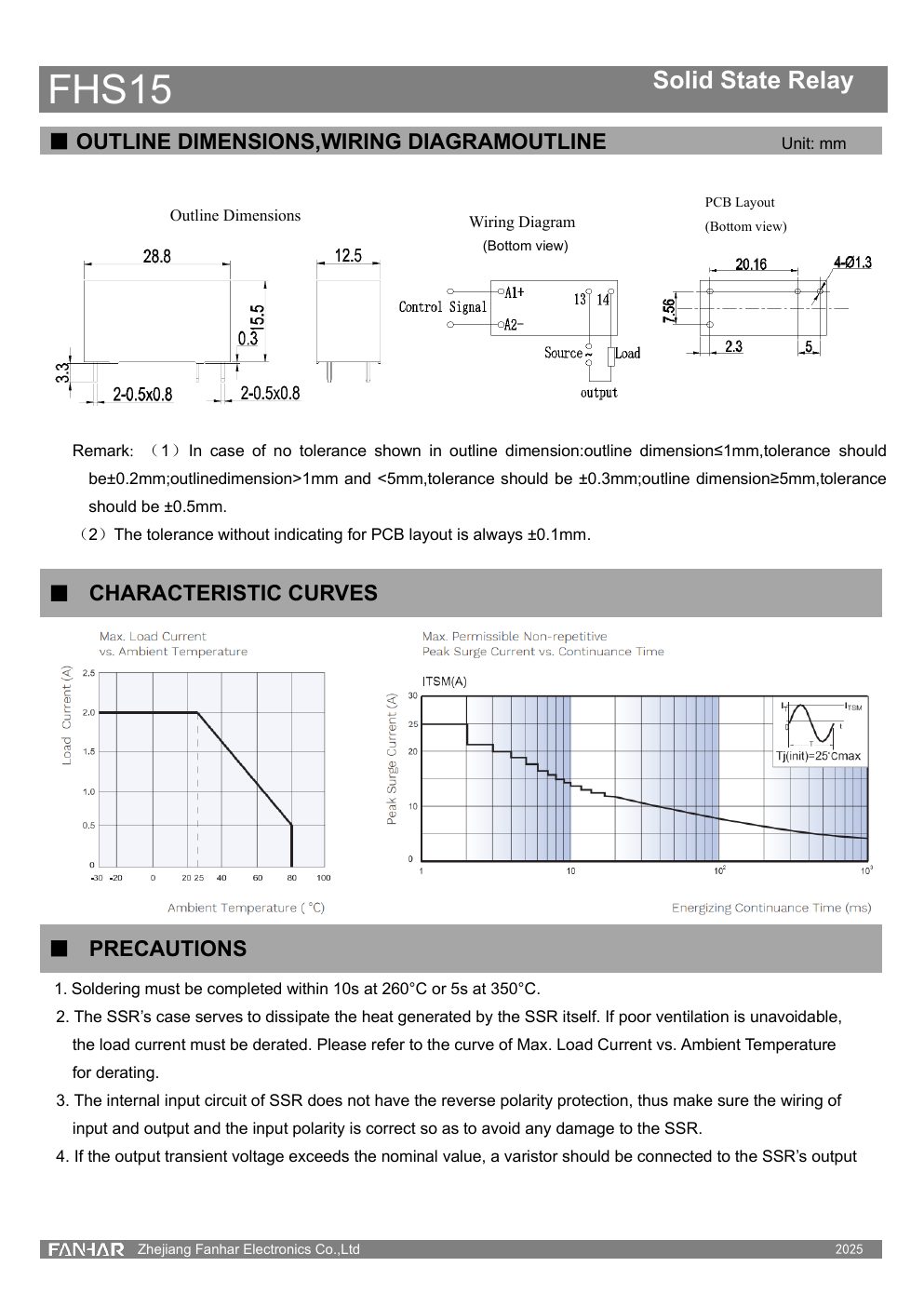

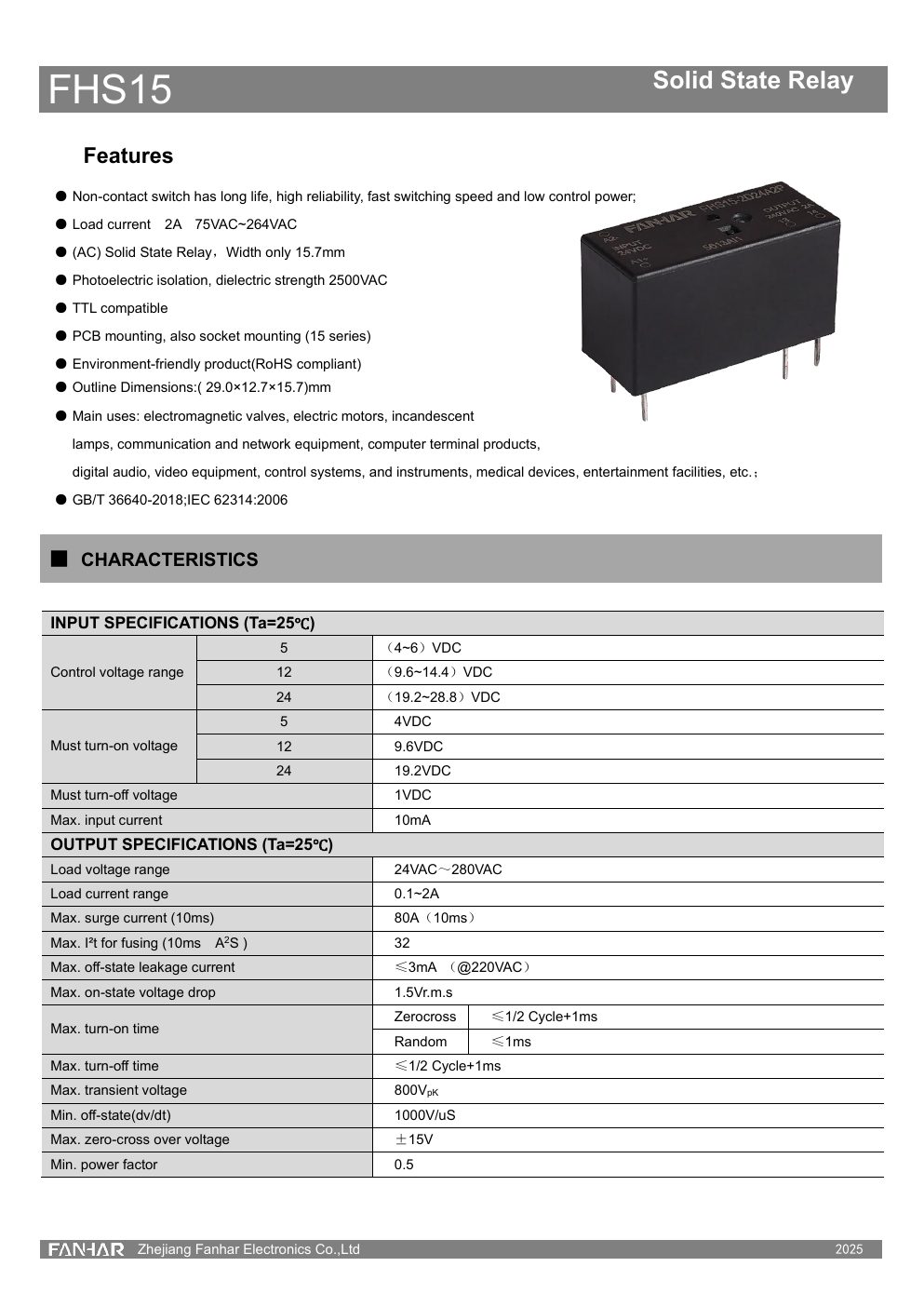

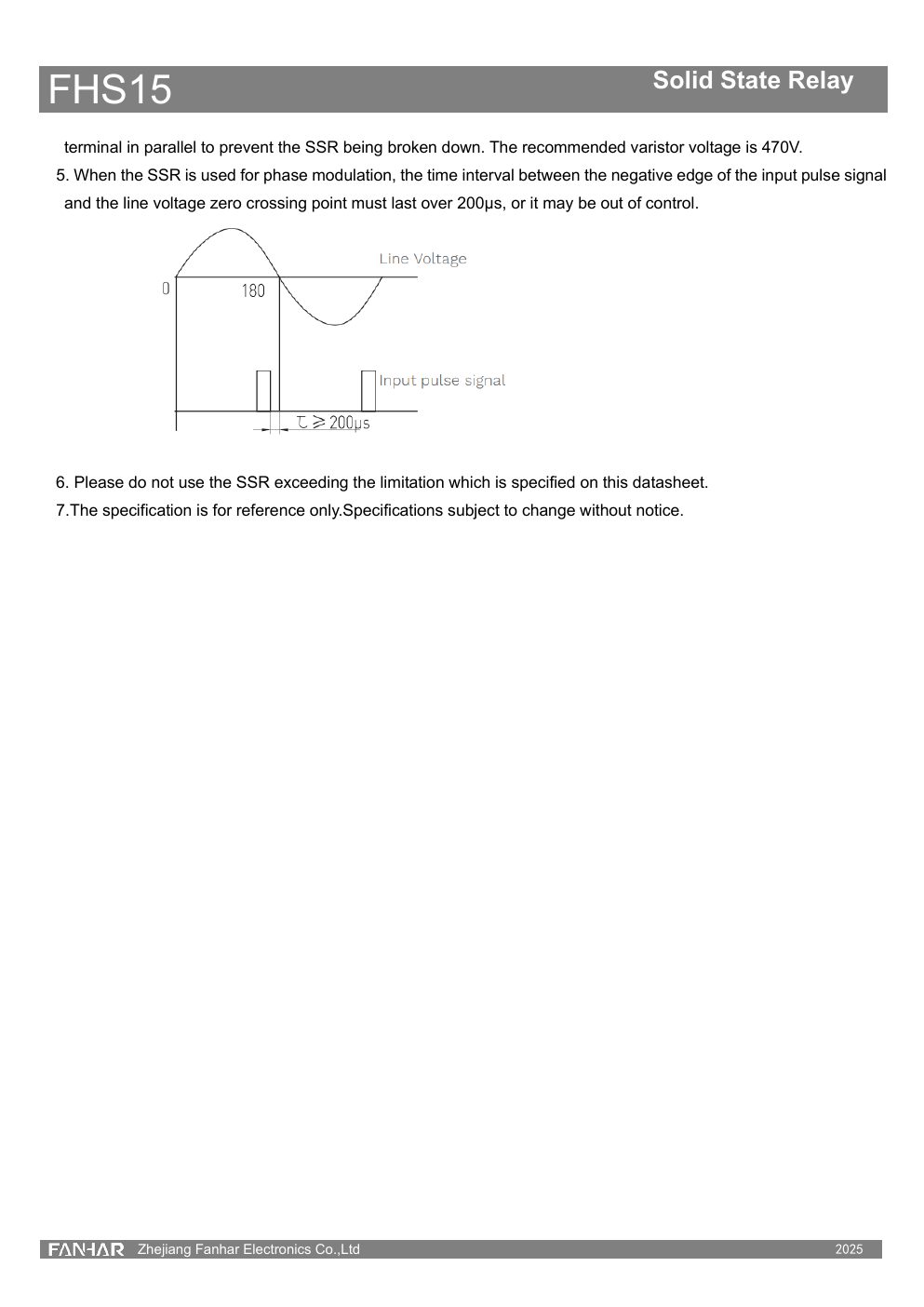

Datasheet Preview
